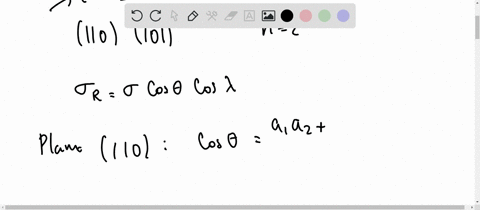

(a) A single crystal of a metal that has the BCC crystal structure is oriented such that a tensile stress is applied in the [100] direction. If the magnitude of this stress is $4.0 \mathrm{MPa}, \mathrm{com}$ pute the resolved shear stress in the $[1 \overline{1} 1]$ di rection on each of the $(110),(011),$ and $(10 \overline{1})$ planes (b) On the basis of these resolved shear stress values, which slip system(s) is (are) most favorably oriented?

(a) A single crystal of a metal that has the BCC crystal structure is oriented such that a tensile stress is applied in the [100] direction. If the magnitude of this stress is $4.0 \mathrm{MPa}, \mathrm{com}$ pute the resolved shear stress in the $[1 \overline{1} 1]$ di rection on each of the $(110),(011),$ and $(10 \overline{1})$ planes
(b) On the basis of these resolved shear stress values, which slip system(s) is (are) most favorably oriented?

Key Concepts

Body-Centered Cubic (BCC) Crystal Structure

The body-centered cubic structure is one of the common types of crystal lattices found in metals, characterized by one atom at each cube corner and one atom at the cube center. The specific symmetry and atomic packing in BCC metals influence the available slip systems and the deformation mechanisms, making it important to analyze how stress, orientation, and slip systems interact in such materials.

Crystallographic Directions and Miller Indices

Miller indices provide a notation system to denote both crystallographic directions and planes in a crystal lattice, allowing for a clear description of orientations and geometries in crystallography. This notation is crucial for identifying slip systems, lattice orientations, and for mapping the effects of applied stresses relative to the crystal lattice.

Schmid Factor

The Schmid factor quantifies how favorably oriented a specific slip system is under an applied load, by combining the angles between the applied stress direction and both the slip plane normal and the slip direction. It is used to predict the onset of slip by relating the external stress to the resolved shear stress; the slip system with the highest Schmid factor will generally yield first.

Resolved Shear Stress

Resolved shear stress is the component of an externally applied stress that is effective in causing slip along a specific crystallographic slip system. It is obtained by projecting the applied tensile stress onto the slip plane and slip direction, typically using directional cosines, and is an important parameter for understanding when and how plastic deformation initiates in single crystals.

Slip Systems in Crystallography

Slip systems define the combinations of crystallographic planes and directions along which dislocations move most easily and plastic deformation occurs in crystalline materials. Understanding slip systems is essential because they determine the critical resolved shear stress necessary for plastic flow, and in many metals, only certain planes and directions are activated for slip due to the symmetry and atomic arrangement.
