A. Assemble the stiffness matrix for the assemblage shown in...

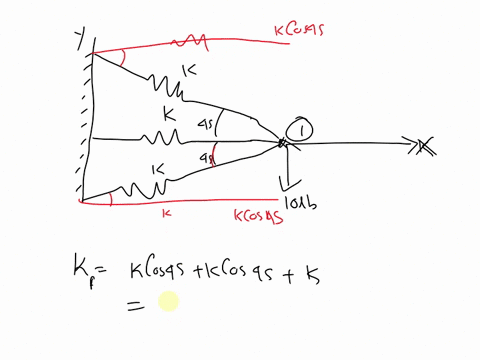

a. Assemble the stiffness matrix for the assemblage shown in Figure P3-19 by superimposing the stiffness matrices of the springs. Here $k$ is the stiffness of each spring.
b. Find the $x$ and $y$ components of deflection of node 1 .

Key Concepts

Degrees of Freedom

Degrees of freedom (DOF) refer to the independent displacement components at a node in a mechanical or structural system. In the context of a two-dimensional problem, nodes typically have two DOFs, commonly identified as the x (horizontal) and y (vertical) displacements. Correct identification and association of DOFs is critical for the assembly of the global stiffness matrix.

Superposition Principle

The superposition principle is used to combine the effects of multiple elements in a structural system. When assembling the global stiffness matrix, the individual stiffness matrices of elements such as springs are overlaid, or superimposed, according to their connectivity and orientation, so that the cumulative effect on each degree of freedom is represented accurately.

Deflection Analysis

Deflection analysis involves calculating the displacements at various nodes in a structure under applied loads. By solving the system of equations formed from the assembled global stiffness matrix and the force vector, the x and y components of nodal deflections can be determined. This analysis is key to predicting the performance and ensuring the structural integrity of the system.

Stiffness Matrix

The stiffness matrix is a fundamental concept in structural mechanics that relates the nodal displacements to the applied forces. It is a square matrix whose entries represent the resistance of an element or a structure to deformation in response to external loads. This matrix is essential when analyzing how loads translate into displacements in mechanical systems.

Element Stiffness Matrix

An element stiffness matrix is associated with an individual component, such as a spring or beam, within a larger structural framework. For a spring, the stiffness matrix is derived from Hooke's Law and captures how the spring resists displacements along its axis. These matrices serve as building blocks for constructing the global stiffness matrix of a structure.
