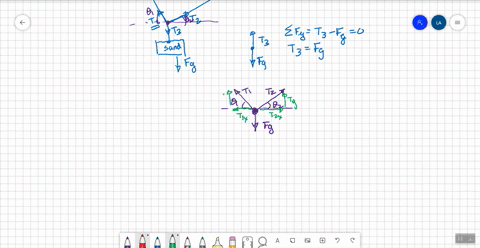

A bag of cement of weight $F_{k}$ hangs in equilibrium from three wires as shown in Figure $\mathrm{P} 5.20$ . Two of the wires make angles $\theta_{1}$ and $\theta_{2}$ with the horizontal. Assuming the system is in equilibrium, show that the tension in the left- hand wire is $$ T_{1}=\frac{F_{k} \cos \theta_{2}}{\sin \left(\theta_{1}+\theta_{2}\right)} $$

A bag of cement of weight $F_{k}$ hangs in equilibrium from three wires as shown in Figure $\mathrm{P} 5.20$ . Two of the wires make angles $\theta_{1}$ and $\theta_{2}$ with the horizontal. Assuming the system is in equilibrium, show that the tension in the left- hand wire is
$$
T_{1}=\frac{F_{k} \cos \theta_{2}}{\sin \left(\theta_{1}+\theta_{2}\right)}
$$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Static Equilibrium Equations

These equations are derived from Newton's first law and require the sum of all horizontal forces and the sum of all vertical forces to both be zero. They provide a framework for solving for unknown quantities in a static system, ensuring that the net force and, therefore, acceleration is zero.

Trigonometric Relationships

Trigonometric functions such as sine and cosine are used to relate the angles of applied forces to their respective components. These relationships are key to formulating the equations needed for solving for unknown forces, such as tensions in wires.

Vector Resolution

This is the process of decomposing a force into its horizontal and vertical components using trigonometric functions. It allows the application of equilibrium conditions along each axis separately, which is essential in solving systems with forces acting at angles.

Equilibrium of Forces

This concept involves ensuring that the sum of all forces acting on a system equals zero, leading to a state of no net motion. In the context of statics, it guarantees that the object or system remains at rest due to balanced forces.
