A battery has emf 24.0 V and internal resistance 3.00 Ω. A resistor of resistance R is connecte

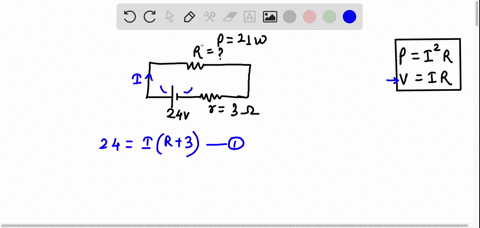

step 1 Hi, in the given problem EMF of the battery is given as E is equal to 24 .0 volt. Its internal r

A battery has emf 24.0 V and internal resistance 3.00 Ω. A...

Key Concepts

Electromotive Force (EMF)

EMF is the voltage provided by a battery or any power source when no current is flowing. It represents the ideal voltage output and is a driving factor that moves charge through the circuit. Understanding EMF is essential to analyzing circuits as it sets the potential difference available to overcome resistive elements including both internal and external resistances.

Internal Resistance

Internal resistance refers to the inherent resistance within a battery or power source that impedes the flow of current. This resistance causes a voltage drop inside the battery when current flows, reducing the effective voltage across external circuit elements. Recognizing internal resistance is crucial because it affects the overall circuit performance, particularly in calculations of current and power distribution.

Ohm's Law

Ohm's Law is a fundamental principle in electrical circuits that relates voltage (V), current (I), and resistance (R) through the equation V = IR. It allows for the analysis of how voltage is distributed in a circuit and how current flows through resistors. This concept is applied to understand both the behavior of individual resistors and the entire circuit including internal resistances.

Power in Electrical Circuits

The power consumed by a resistor in a circuit is given by the formula P = I²R or P = V²/R, where I is the current through the resistor and V is the voltage across it. In circuits with internal resistance, the effective voltage across the resistor is reduced, so the formula must account for the drop due to internal resistance. Understanding this concept is vital for analyzing how energy is dissipated as heat and for designing circuits with desired power characteristics.

Quadratic Equation in Circuit Analysis

When solving for an unknown resistance that results in a specified power output in a circuit that includes both internal and external resistances, a quadratic equation often arises. This quadratic form comes from substituting circuit relationships like Ohm's Law into the power equation, and solving it yields two possible values for the resistance. Mastery of solving quadratic equations is important in electrical engineering to address non-linear relationships in circuit behavior.
