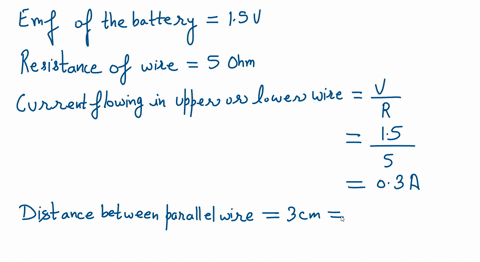

A battery is connected to a Nichrome wire and a conventional current of 0.3 A runs through the wire. The wire is laid out in the form of a rectangle $50 \mathrm{cm}$ by $3 \mathrm{cm} .$ (a) What is the approximate magnetic field at the center of the rectangle? Give the direction as well as the magnitude. (b) What approximations did you make?

Key Concepts

Right-Hand Rule

This is a mnemonic rule used to determine the direction of the magnetic field around a current-carrying conductor. By pointing the thumb of the right hand in the direction of the conventional current, the fingers wrap around in the direction of the magnetic field. Using the right-hand rule is essential when determining the vector direction of the magnetic field at the center of a current loop.

Approximations in Magnetic Field Calculations

When calculating the magnetic field, certain approximations are often made to simplify the integration process or the resulting expressions. These might include neglecting the finite width or thickness of the wire, assuming the magnetic field contributions from each segment can be added using symmetry considerations, or approximating segments as infinitely long when their length is much larger than the dimensions of interest. Such approximations facilitate obtaining an approximate solution without significantly compromising accuracy for many practical scenarios.

Biot–Savart Law

This law is fundamental in electromagnetism for calculating the magnetic field generated by a steady current. It provides an expression for the differential contribution of the magnetic field produced by a small segment of current-carrying conductor. By integrating over the entire current path, one can determine the total magnetic field at a given point in space, which is especially useful when dealing with current configurations of arbitrary shapes such as a rectangle.

Magnetic Field at the Center of a Current Loop

The concept involves calculating the magnetic field produced at the center of a loop or a segmented loop of wire carrying current. For simple geometries, there are standard formulas derived from the Biot–Savart law, allowing for the summation of contributions from all sides. In the case of a rectangular loop, each side’s contribution is calculated and then added vectorially, taking into account the geometry of the loop.
