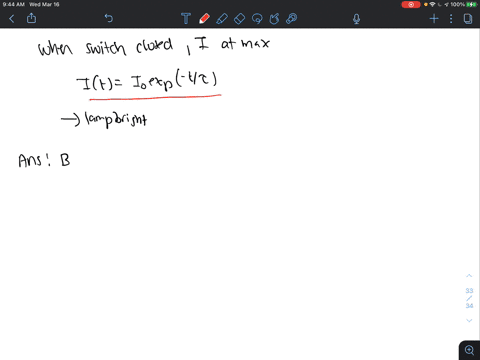

A battery, switch, capacitor, and lamp are connected in series. Describe what happens to the lam

step 1 In this question we have this following circuit where the battery will have the switch, a capaci

A battery, switch, capacitor, and lamp are connected in...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Transient Response in RC Circuits

The transient response in an RC circuit refers to the period immediately after a change in the circuit, such as closing a switch. During this transient period, the current and voltage across components like a lamp change over time; initially, the lamp may be brightly lit due to the high current, but as the capacitor charges, the current—and consequently the brightness of the lamp—diminishes.

Series Circuit

A series circuit is one where all components are connected end-to-end so that the same current flows sequentially through each element. Understanding series circuits involves applying concepts such as Kirchhoff’s voltage law, which states that the sum of voltage drops across each component equals the total supplied voltage.

Capacitor Charging

When a capacitor is connected in a circuit with a battery, it initially behaves like a short circuit because it is uncharged. This allows a large current to flow at the moment the switch is closed, which then gradually decreases as the capacitor accumulates charge and its voltage increases, eventually reducing the current flow.
