A biomechanical model of the lumbar region of the human...

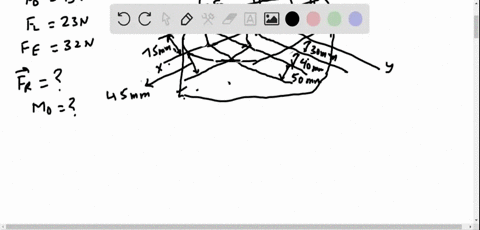

A biomechanical model of the lumbar region of the human trunk is shown. The forces acting in the four muscle groups consist of $F_{R}=35 \mathrm{N}$ for the rectus, $F_{o}=45 \mathrm{N}$ for the oblique, $F_{L}=23 \mathrm{N}$ for the lumbar latissimus dorsi, and $F_{E}=32 \mathrm{N}$ for the erector spinae. These loadings are symmetric with respect to the $y-z$ plane. Replace this system of parallel forces by an equivalent force and couple moment acting at the spine, point $O .$ Express the results in Cartesian vector form.

Key Concepts

Equivalent Force-Couple System

This concept involves replacing a complex system of distributed forces with a single resultant force and an accompanying couple (or moment) that has the same external effect on the body. It is a fundamental idea in statics and biomechanics for simplifying the analysis of forces acting on a body, allowing one to work with a more manageable model while preserving equilibrium conditions.

Resultant Force

The resultant force is the vector sum of all individual forces acting on a body. In many mechanical and biomechanical problems, multiple forces applied at different locations can be combined into one equivalent force to represent the net effect. This simplification makes it easier to analyze the overall effect on equilibrium and motion.

Moment (Couple) Calculation

Calculating the moment, or couple, about a reference point involves determining the turning effect produced by forces that do not act through that point. This is typically done using the cross product of the position vector (from the reference point to the line of action of the force) and the force vector itself. The resulting moment quantifies the rotational influence on the body and is essential for understanding stability and equilibrium.

Cartesian Vector Representation

Expressing forces and moments in Cartesian vector form means that they are represented with components along the x, y, and z axes. This allows for precise mathematical description and manipulation using vector operations, which is crucial in both theoretical analysis and practical applications in biomechanics and engineering.
