A block of dry ice slides at constant velocity along a...

Name: Problem 5, Chapter 2: College Physics
Uploaded: 2020-04-05T22:00:42-08:00
Duration: 3 min 26 s
Channel: Chris Murray

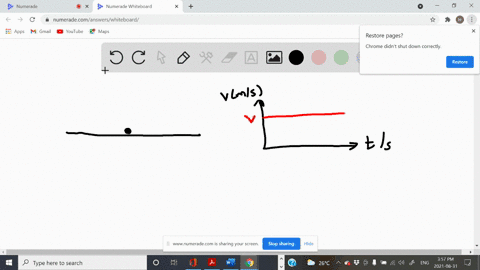

Description: A block of dry ice slides at constant velocity along a smooth, horizontal surface (no friction). (a) Construct a motion dia- gram. (b) Draw position- and velocity-versus-time graphs. (c) Construct a force diagram for the block for three instances represented by dots on the motion diagram. Are the diagrams consistent with each other?

A block of dry ice slides at constant velocity along a smooth, horizontal surface (no friction). (a) Construct a motion dia- gram. (b) Draw position- and velocity-versus-time graphs. (c) Construct a force diagram for the block for three instances represented by dots on the motion diagram. Are the diagrams consistent with each other?

Key Concepts

Motion Diagrams

A motion diagram is a visual representation that shows the position of an object at various, typically equally spaced, time intervals. It helps in understanding how an object moves over time by marking discrete points along its trajectory. This method emphasizes the object’s constant movement when the positions are uniformly spaced, providing an intuitive grasp of speed and direction.

Position and Velocity Graphs

Position-versus-time and velocity-versus-time graphs are crucial tools in kinematics that illustrate an object's motion. For constant velocity motion, the position-time graph is a straight line with a constant slope, showing uniform displacement over time, while the velocity-time graph is a horizontal line, indicating unchanging speed. These graphs simplify the analysis of motion and help in identifying the relationship between displacement, speed, and time.

Free-Body Diagrams

Free-body diagrams, or force diagrams, are essential for understanding the forces acting on an object at any given moment. They provide a simplified representation by isolating the object and depicting all external forces acting on it, such as gravity, normal force, friction, etc. In scenarios with constant velocity, these diagrams underscore that the net force on the object is zero, illustrating the balance of forces according to Newton's First Law.

Consistency Across Diagrams

Ensuring consistency across different representations—motion diagrams, graphs, and free-body diagrams—is key in physics. Each representation should coherently reflect the same underlying principles, such as how a constant velocity implies a linear position-time graph, a horizontal velocity-time graph, and a balanced force diagram with zero net force. This cross-validation reinforces the correct application of kinematic and dynamic principles.
