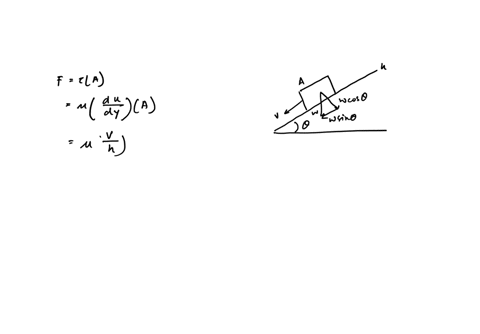

A block of mass 10 kg and measuring 250 mm on each edge is pulled up an inclined surface on whic

step 1 Hi everyone here it is given block moving on incline on oil layer mass of the block 10 kg its we

A block of mass 10 kg and measuring 250 mm on each edge is...

A block of mass $10 \mathrm{kg}$ and measuring $250 \mathrm{mm}$ on each edge is pulled up an inclined surface on which there is a film of SAE $10 \mathrm{W}-30$ oil at $30^{\circ} \mathrm{F}$ (the oil film is $0.025 \mathrm{mm}$ thick). Find the steady speed of the block if it is released. If a force of $75 \mathrm{N}$ is applied to pull the block up the incline, find the steady speed of the block. If the force is now applied to push the block down the incline, find the steady speed of the block. Assume the velocity distribution in the oil film is linear. The surface is inclined at an angle of $30^{\circ}$ from the horizontal.

Key Concepts

Viscous Drag

This concept refers to the resistance force exerted by a fluid when an object moves through it. In problems involving a thin film of lubricant, such as oil, the viscous drag force is typically proportional to the fluid’s dynamic viscosity, the contact area of the moving object, and the rate of shear (i.e., the velocity gradient) within the fluid layer.

Newtonian Fluid Behavior

Newtonian fluids have a constant viscosity independent of the shear rate, which means the shear stress within the fluid is directly proportional to the velocity gradient. This linear relationship is crucial when assuming a linear velocity profile in the oil film on the inclined surface.

Linear Velocity Profile in Thin Films

When the fluid film thickness is small, it is common to assume that the velocity changes linearly from zero at one surface (due to the no?slip condition) to the full velocity at the other surface. This assumption simplifies the calculation of shear stress and the resulting viscous force acting on the object.

Force Equilibrium on an Inclined Plane

For an object moving at steady speed on an inclined plane, the net force along the direction of motion must be zero. This equilibrium involves balancing the driving forces (such as gravity component along the incline and any applied external forces) with the resisting forces (like viscous drag).

Gravitational Component on an Incline

When an object is on an inclined plane, gravity exerts a force that can be decomposed into components perpendicular and parallel to the surface. The parallel component is critical in determining the motion of the object along the plane and must be considered when establishing force balance in steady motion.
