A block of mass 2.20 kg is accelerated across a rough...

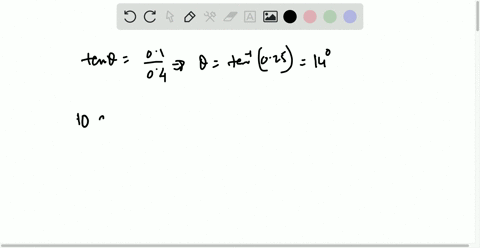

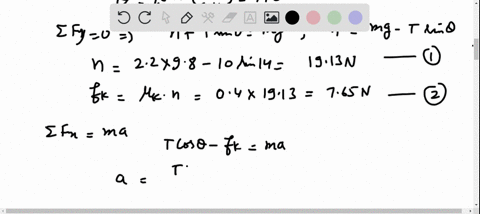

A block of mass $2.20 \mathrm{~kg}$ is accelerated across a rough surface by a rope passing over a pulley, as shown in Figure $\mathrm{P} 5.52$. The tension in the rope is $10.0 \mathrm{~N}$, and the pulley is $10.0 \mathrm{~cm}$ above the top of the block. The coefficient of kinetic friction is $0.400$. (a) Determine the acceleration of the block when $x=0.400 \mathrm{~m} .$ (b) Find the value of $x$ at which the acceleration becomes zero.

Key Concepts

Newton's Second Law

Newton's Second Law states that the net force acting on an object equals the mass of the object multiplied by its acceleration (F_net = m·a). This principle is used to determine the acceleration of an object when all the forces, such as applied tension and frictional resistance, are known or can be decomposed into components.

Force Decomposition

Force decomposition is the process of breaking down a vector into its horizontal and vertical components. When a tension force is applied at an angle, especially in cases where the angle changes with displacement, it is essential to resolve the force into components using trigonometric functions in order to analyze the motion along the surface where the object moves.

Kinetic Friction

Kinetic friction is the force that opposes the motion of an object sliding over a surface and is calculated as the product of the coefficient of kinetic friction and the normal force. Accurately assessing how kinetic friction interacts with other forces is crucial for determining the net force and consequent acceleration of the object.

Trigonometric Analysis in Force Components

Trigonometric analysis involves using sine, cosine, and tangent functions to relate the geometry of the setup to the direction of the forces. In problems where a rope passes over a pulley, the angle formed by the rope with the horizontal is determined by the geometric relationship between the vertical offset and the horizontal displacement, affecting the magnitude of the force components.

Geometric Relationships in Motion

Geometric relationships in a physical system are used to relate displacements, angles, and distances. In this problem, the fixed height of the pulley above the block and the variable horizontal displacement of the block determine how the rope's angle—and therefore the distribution of the tension force—changes over time, impacting the net force and acceleration.
