A block on a frictionless table is connected as shown in...

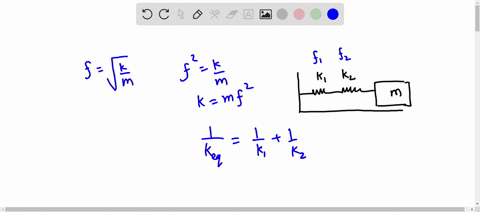

A block on a frictionless table is connected as shown in Figure P14.74 to two springs having spring constants $k_{1}$ and $k_{2} .$ Find an expression for the block's oscillation frequency $f$ in terms of the frequencies $f_{1}$ and $f_{2}$ at which it would oscillate if attached to spring 1 or spring 2 alone. (FIGURE CANT COPY)

Key Concepts

Simple Harmonic Motion

Simple harmonic motion refers to the periodic oscillatory motion of a system where the restoring force is directly proportional to the displacement from equilibrium. In systems involving springs, this concept underlies the motion's dependence on the mass and spring constant, leading to oscillations that are sinusoidal in nature.

Effective Spring Constant in Parallel

When two springs are attached to the same mass such that both contribute to the restoring force simultaneously, the effective spring constant is the sum of the individual spring constants. This means that the combined system behaves like a single spring with a constant equal to k? + k?, which directly influences the frequency of oscillation.

Relationship between Angular Frequency and Frequency

In oscillatory systems, the angular frequency (?) is related to the spring constant and the mass by the formula ? = ?(k/m). The regular frequency (f) is then given by f = ?/(2?). This relationship connects the physical properties of the system to its rate of oscillation.

Expressing Combined Oscillation Frequency

By substituting the effective spring constant into the formula for frequency, one finds that the oscillation frequency of the system with two springs is determined by the square root of the sum of the squares of the individual frequencies (when each spring is connected alone). This concept illustrates how multiple restorative influences combine to yield a new overall frequency.
