(a) Calculate the capacitance needed to get an $R C$ time constant of $1.00 \times 10^3 \mathrm{~s}$ with a $0.100-\Omega$ resistor. (b) What is unreasonable about this result? (c) Which assumptions are responsible?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

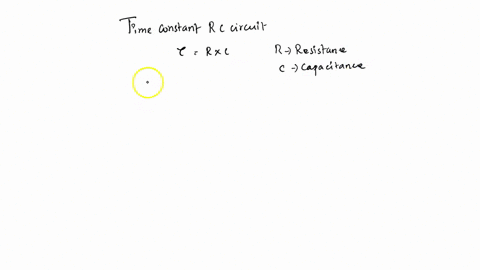

RC Time Constant

The RC time constant, denoted by ?, is defined as the product of resistance (R) and capacitance (C) in an RC circuit. It characterizes how quickly a capacitor charges or discharges and is central to the transient behavior analysis of electrical circuits.

Capacitance Calculation

Calculating capacitance in an RC circuit involves rearranging the time constant formula (? = RC) to determine the required capacitance given a desired time constant and a known resistance. This mathematical derivation is fundamental in circuit design and analysis.

Practical Limitations of Component Values

In circuit design, the practicality of component values must be considered. Extremely large or small values of capacitance or resistance may be physically unattainable or impractical due to limitations such as size, cost, parasitic elements, and non-ideal behaviors in real-world components.

Assumptions of Ideal Components in Circuit Analysis

Analyses that yield unrealistic component values often stem from idealizations in theoretical models. Assumptions like perfect resistors and capacitors ignore parasitics, manufacturing tolerances, and other real-world effects, which can lead to results that are not feasible in practical applications.
