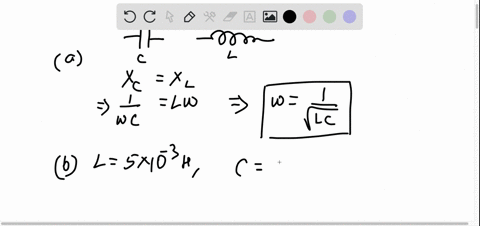

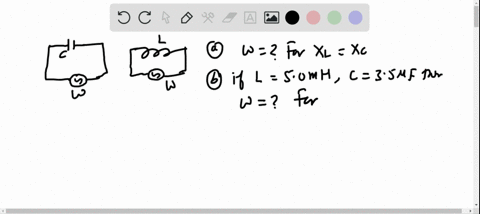

A capacitance $C$ and an inductance $L$ are operated at the same angular frequency. (a) At what angular frequency will they have the same reactance? (b) If $L=5.00 \mathrm{mH}$ and $C=3.50 \mu \mathrm{F},$ what is the numerical value of the angular frequency in part (a), and what is the reactance of each element?

a) $\omega=\frac{1}{\sqrt{L C}}$b) $=7560 \mathrm{rad} / \mathrm{s}$$=37.8 \Omega$
