A capacitor consists of square conducting plates 25 cm on a side and 5.0 mm apart, carrying char

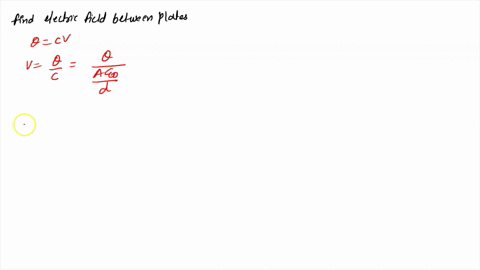

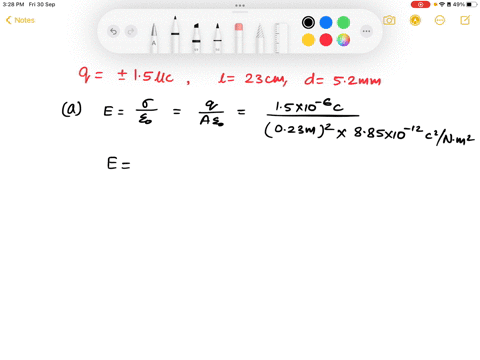

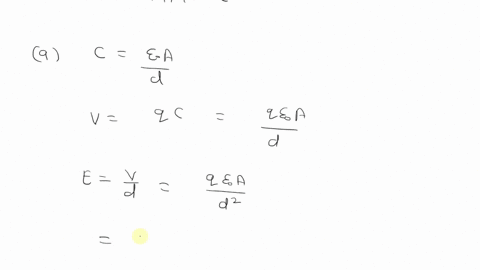

step 1 In the first part of this problem, we are going to calculate the electric field between the plat

A capacitor consists of square conducting plates 25 cm on a...

Key Concepts

Capacitance

Capacitance is a measure of a capacitor's ability to store charge per unit potential difference. For a parallel plate capacitor, it is determined by the area of the plates, the separation between them, and the properties of the dielectric material between the plates, typically given by C = ??A/d for an air gap. Understanding capacitance is essential for analyzing how physical dimensions and material properties affect a capacitor's performance.

Stored Energy

The energy stored in a capacitor is a measure of the work required to charge it. It is stored in the electric field between the plates and can be expressed using formulas such as U = ½ QV or U = Q²/(2C), where Q is the charge, V is the potential difference, and C is the capacitance. This concept is crucial when considering energy storage and discharge in capacitive elements.

Parallel Plate Capacitor

A parallel plate capacitor is a basic electrical component consisting of two conductive plates separated by a small gap, usually with a dielectric in between. It stores energy in the electric field established between the plates and its behavior is characterized by the geometry of the plates (area and separation) and the properties of the material between them.

Electric Field

The electric field in a parallel plate capacitor is uniform between the plates and is determined by the surface charge density on the plates. It can be calculated using the relationship E = ?/??, where ? is the charge per unit area and ?? is the permittivity of free space. This concept is fundamental in understanding how charges produce an electric field in devices.

Potential Difference

The potential difference (voltage) between the plates of a capacitor is the result of the work done to move a charge between the plates against the electric field. In a uniform field, the voltage is directly proportional to the separation between the plates and the field strength, given by V = E × d. This relationship helps in establishing how the stored energy and field relate to the physical dimensions of the capacitor.
