A capacitor consists of two long concentric metal cylinders (Fig. 23,15 ). Find an expression fo

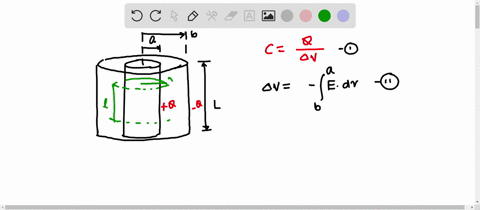

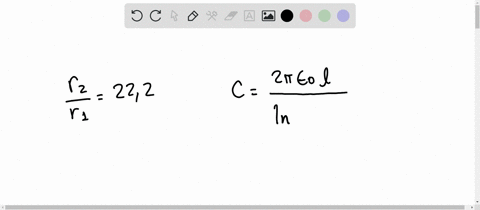

step 1 In this problem, we are going to calculate the capacitance of cylindrical capacitor, that is C.

A capacitor consists of two long concentric metal cylinders...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Logarithmic Dependence in Cylindrical Capacitors

The integration of 1/r over radial distances results in a natural logarithm function, which appears in the formula for the capacitance of coaxial cylindrical capacitors. This logarithmic relationship captures how the geometry influences the voltage drop and stored energy.

Capacitance

Capacitance is a measure of a capacitor's ability to store charge per unit voltage. It is defined as the ratio of the charge stored on one of the conductors to the voltage difference between the conductors.

Gauss’s Law

Gauss’s law relates the electric flux through a closed surface to the charge enclosed by that surface. In systems with high symmetry, such as cylindrical geometries, it is an essential tool to derive expressions for the electric field.

Cylindrical Symmetry

When dealing with systems like concentric cylinders, the cylindrical symmetry simplifies the electric field and potential calculations. This symmetry allows the use of a cylindrical Gaussian surface to determine the field distribution between the conductors.

Electric Field Integration

Integrating the electric field along a path between the conductors gives the potential difference. In cylindrical systems, this involves integrating a 1/r dependence, which naturally leads to logarithmic functions in the resulting expressions.
