Question
A capacitor is connected to a cell of emf $E$ having some internal resistance $r$. The potential difference across the(a) cell is $<E$(b) cell is $E$(c) capacitor is $>E$(d) capacitor is $<E$
Step 1
The circuit diagram can be represented as follows: \[ \begin{array}{c} \begin{array}{c} \text { Battery (E) } \\ \uparrow \\ \text { Internal Resistance (r) } \\ \uparrow \\ \text { Capacitor (C) } \end{array} \end{array} \] Show more…
Show all steps
Your feedback will help us improve your experience
Mirza Aslam Beig and 74 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

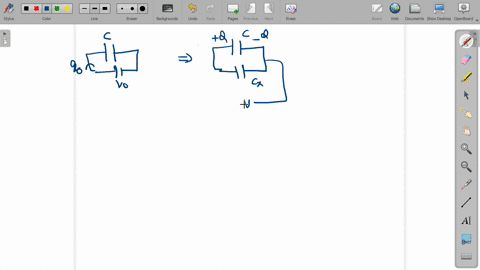

A capacitor of capacitance $C$ is charged to a potential difference $V_{0}$. The charged battery is disconnected and the capacitor is connected to a capacitor of unknown capacitance $C_{x}$. The potential difference across the combination is $V$. The value of $C_{r}$ should be : (a) $\frac{C\left(V_{0}-V\right)}{V}$ (b) $\frac{C\left(V-V_{0}\right)}{V}$ (c) $\frac{\mathrm{CV}}{V_{0}}$ (d) $\frac{C V_{0}}{V}$
A capacitor of capacitance $C$ is charged to a potential difference $V$ from a cell and then disconnected from it. A charge $+Q$ is now given to its positive plate. The potential difference across the capacitor is now: (a) $V$ (b) $V+\frac{Q}{C}$ (c) $V+\frac{\partial}{2 C}$ (d) $V-\frac{Q}{C}$

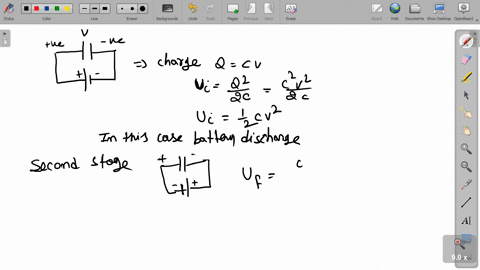

A capacitor $C$ is charged to a potential $V$ by a battery. The emf of the battery is $V$. It is then disconnected from the battery and again connected with it, when its polarity reversed to the battery: (a) The work done by the battery is $2 C V^{2}$ (b) The total charge passing through the battery is $2 \mathrm{CV}$ (c) The initial and final energy of a capacitor is same (d) all of the above
