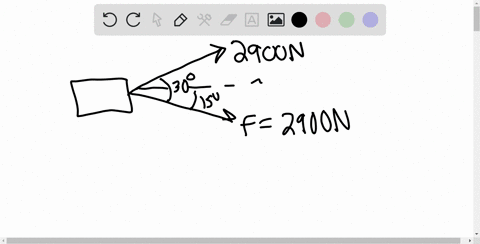

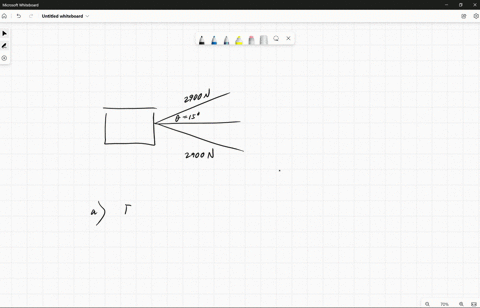

A car is being pulled out of the mud by two forces that are applied by the two ropes shown in the drawing. The dashed line in the drawing bisects the $30.0^{\circ}$ angle. The magnitude of the force applied by each rope is 2900 newtons. Arrange the force vectors tail to head and use the graphical technique to answer the following questions. (a) How much force would a single rope need to apply to accomplish the same effect as the two forces added together? (b) How would the single rope be directed relative to the dashed line?

A car is being pulled out of the mud by two forces that are applied by the two ropes shown in the drawing. The
dashed line in the drawing bisects the $30.0^{\circ}$ angle. The magnitude of the force applied by each rope is 2900 newtons. Arrange the force vectors tail to head and use the graphical technique to answer the following questions. (a) How much force would a single rope need to apply to accomplish the same effect as the two forces added together? (b) How would the single rope be directed relative to the dashed line?

Key Concepts

Force as a Vector

Forces are represented as vectors, which have both magnitude and direction. This concept is fundamental to understanding how different forces interact and combine. When analyzing problems involving forces, each force is drawn as an arrow, where the length represents its magnitude and the arrow points in the direction of the force.

Vector Addition

Vector addition is the process of combining two or more vectors to produce a resultant vector. This requires taking both the magnitudes and directions into account. In mechanics, especially in problems involving forces, vector addition helps determine the net effect of multiple forces acting on an object.

Graphical Vector Addition

Graphical vector addition is a method of determining the resultant of two or more vectors by arranging them head-to-tail on a diagram. This method allows one to visually estimate both the magnitude and direction of the resultant vector, and is often used as a complement to analytical methods.

Resultant Force

The resultant force is the single force that has the same effect on an object as the combined forces acting on it. In problems where multiple forces are applied, calculating the resultant force is essential for understanding the net effect on the object's state of motion.

Law of Cosines in Vector Addition

When two vectors are not perpendicular, the law of cosines is used to calculate the magnitude of the resultant vector. This technique involves using the known magnitudes of the vectors and the angle between them. It provides an analytical method to determine the magnitude when forces are added at an angle.

Angle Bisector in Force Direction

The bisector of an angle divides the angle into two equal parts. In a symmetrical force system, where two equal-magnitude forces are applied at equal angles relative to a reference line, the resultant force typically lies along the bisector. This concept helps in understanding and determining the direction of the net force when forces are applied symmetrically.
