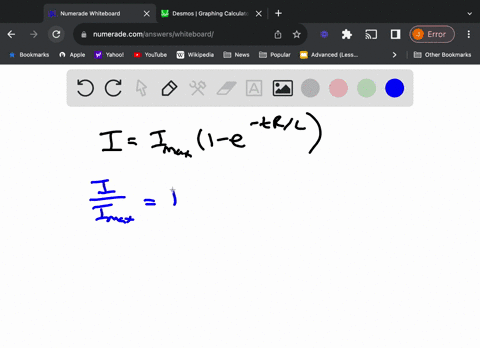

A certain electronic device needs to be protected against sudden surges in current. In particular, after the power is turned on, the current should rise no more than 7.5 mA in the first 120 $\mu$s. The device has resistance 120 $\Omega$ and is designed to operate at 55 mA. How would you protect this device?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Inrush Current

Inrush current refers to the instantaneous high surge of current drawn by an electrical device when power is first applied. This surge can be much higher than the steady-state operating current and may potentially damage sensitive components if not properly controlled.

Soft-Start Mechanism

A soft-start mechanism is a method used in power electronics to gradually ramp up the power or current supplied to a device, thereby preventing high inrush current. This approach ensures that the device reaches its intended operating conditions slowly and safely, reducing stress on the electronic components.

RC Time Constant

The RC time constant is a key parameter in resistor-capacitor (RC) circuits, representing the time required for the voltage across the capacitor to reach approximately 63% of its final value during charging. This concept is crucial in designing circuits that delay or limit the rate of current increase, making it a fundamental tool in soft-start and surge-protection applications.

Surge Protection

Surge protection involves strategies and components that safeguard electronic devices from sudden spikes in voltage or current. It typically includes the use of circuit elements that can either absorb, divert, or limit these impulses, thereby maintaining the integrity and longevity of the device.
