A charge Q is distributed evenly on a wire bent into an arc...

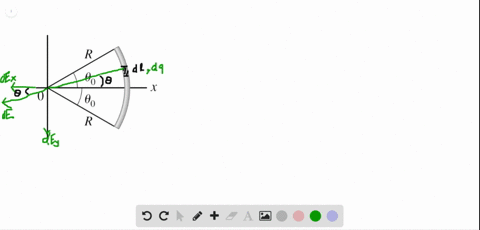

A charge $Q$ is distributed evenly on a wire bent into an arc of radius $R$, as shown in the figure. What is the electric field at the center of the arc as a function of the angle $\theta$ ? Sketch a graph of the electric field as a function of $\theta$ for $0<\theta<180^{\circ}$

Key Concepts

Coulomb's Law

Coulomb's Law describes the electric force between two point charges and leads to the concept of the electric field produced by a point charge. In continuous charge distributions, Coulomb's law is applied by integrating the infinitesimal contributions of electric field from each segment of the distribution, forming the basis for calculating fields produced by non-point charge systems such as an arc.

Charge Distribution in a Continuous Medium

When a charge is uniformly distributed along a curve or wire, it creates a linear charge density, which is the charge per unit length. This concept is essential because it allows the total charge on the arc to be described in terms of differential elements, which can then be integrated to find the overall electric field at points of interest.

Integration over a Continuous Charge Distribution

This concept involves breaking down a continuous charge distribution into infinitesimal segments and summing their contributions to determine the net electric field. Integration is particularly important when computing the electric field from geometrically complex distributions such as an arc, where symmetry and the geometry of the system simplify the integration process.

Arc Geometry and Angular Dependency

The arc geometry introduces a dependence of the electric field on the angular extent of the arc. Since each infinitesimal charge segment contributes differently based on its angular position relative to the center, the integration must account for the angular variable. This dependency is key in understanding how the electric field at the center varies with the arc's angle, which in turn affects the shape of the function when the electric field is graphed as a function of the angle.

Graphical Representation of the Electric Field

Graphing the electric field as a function of the angular span of the arc involves understanding how the field varies with changing parameters, such as the angle. The graph reflects the relationship between the angular extent of the charged arc and the resultant electric field at the center, highlighting trends such as monotonic increases or non-linear behavior over the interval of interest.
