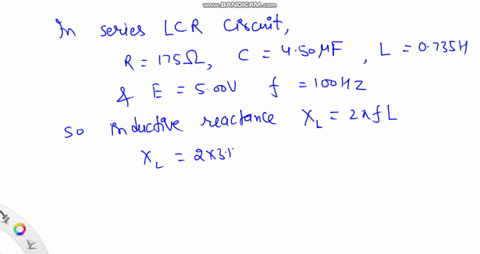

A circuit contains a 175-Ωresistance, a 4.50-μF capacitor, and a 0.735-H in ductance in series w

step 1 Hi, in the given problem, the value of resistance of the circuit is 175 oom, the capacitance is

A circuit contains a 175-Ωresistance, a 4.50-μF capacitor,...

Key Concepts

Impedance

Impedance is the comprehensive measure of opposition that a circuit offers to alternating current, combining both resistance and reactance into a complex quantity. Represented by Z, its magnitude is determined by the formula Z = ?(R² + (X_L – X_C)²). Impedance dictates the amplitude and phase of the current with respect to the applied voltage, serving as a key parameter in AC circuit analysis.

Ohm's Law in AC Circuits

Ohm's Law in AC circuits relates the voltage, current, and impedance in a manner similar to DC circuits but takes into account the phase differences introduced by reactive components. It is expressed as V = IZ, where V is the voltage, I is the current, and Z is the complex impedance. This principle is central to analyzing how alternating current flows through series RLC circuits.

Angular Frequency

Angular frequency, denoted by ? and measured in radians per second, is the rate of change of the phase of a sinusoidal waveform in AC circuits. It is calculated from the frequency (f) using the relation ? = 2?f. This parameter is essential in determining both the capacitive and inductive reactances, which are core to analyzing AC circuits.

Capacitance

Capacitance is the ability of a component, like a capacitor, to store electrical energy in an electric field. It is measured in farads (F) and introduces capacitive reactance in AC circuits, which is frequency dependent. Capacitive reactance is inversely proportional to both the capacitance value and the angular frequency, affecting the phase relationship between voltage and current.

Inductance

Inductance is a property of a component, such as an inductor, that allows it to store energy in a magnetic field. Measured in henries (H), inductors provide inductive reactance in AC circuits, which increases with frequency. This reactance causes a phase shift between the current and voltage and is a key factor in determining the circuit’s overall impedance.

Resistance

Resistance is a property of a circuit component that opposes the flow of electric current, converting electrical energy into heat. It is independent of frequency and is represented by the symbol R, measured in ohms (?). In AC circuits, it plays a crucial role in determining the overall impedance when combined with reactive elements.

Reactance

Reactance is the opposition offered by capacitors and inductors to the change of current in AC circuits. Unlike resistance, it varies with frequency and causes phase differences between voltage and current. Capacitive and inductive reactances are calculated using the formulas X_C = 1/(?C) and X_L = ?L, respectively, and their difference is used to determine the net reactive effect in a circuit.
