A concave mirror (R 56.0 cm) is used to project a transparent slide onto a wall. The slide is located at a distance of 31.0 cm from the mirror, and a small flashlight shines light through the slide and onto the mirror. The setup is similar to that in Figure 25.18a. (a) How far from the wall should the mirror be located? (b) The height of the object on the slide is 0.95 cm. What is the height of the image? (c) How should the slide be oriented, so that the picture on the wall looks normal?

Key Concepts

Image Orientation Correction

Image orientation correction involves understanding that real images produced by concave mirrors are typically inverted. When projecting an image that is meant to be viewed 'normally,' one must consider adjusting the orientation of the original object or slide. This ensures that the final image appears upright to the observer. Awareness of this inversion and the necessary correction is an important aspect of designing projection systems.

Magnification

Magnification in mirror systems is defined as m = -di/do, where the negative sign indicates that the image is inverted relative to the object. This concept is critical for determining the size of the image produced compared to the original object, as well as understanding the orientation of the image. In projection problems, calculating magnification helps in predicting the actual size of the image on the wall.

Mirror Equation

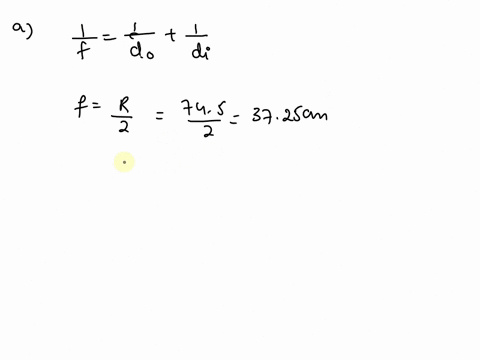

The mirror equation, given by 1/f = 1/do + 1/di, relates the focal length (f) of the mirror with the object distance (do) and the image distance (di). This fundamental relationship in geometric optics is used to predict where an image will be formed relative to the mirror. It is central to solving problems involving the positioning of objects and screens in mirror projection setups.

Concave Mirror Properties

A concave mirror is a spherical mirror that converges incoming parallel rays of light to its focal point. Its behavior is largely determined by its focal length, which is half of the radius of curvature. In this context, understanding that a concave mirror can produce real and inverted images when the object is placed beyond the focal point is essential for analyzing the projection of images onto a surface.
