A conducting spherical shell with inner radius a and outer...

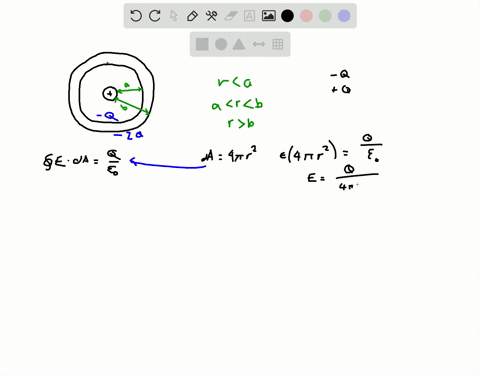

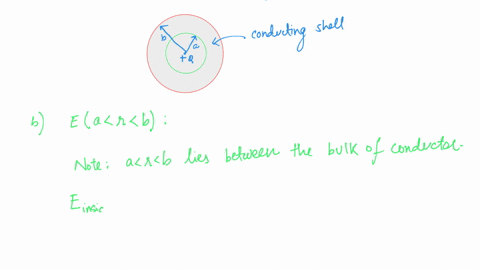

A conducting spherical shell with inner radius $a$ and outer radius $b$ has a positive point charge $Q$ located at its center. The total charge on the shell is $-3 Q,$ and it is insulated from its surroundings (Fig. $\mathbf{P 2 2 . 4 2}$ ). (a) Derive expressions for the electric-field magnitude $E$ in terms of the distance $r$ from the center for the regions $r<a, a<r<b,$ and $r>b .$ What is the surface charge density (b) on the inner surface of the conducting shell; (c) on the outer surface of the conducting shell? (d) Sketch the electric field lines and the location of all charges. (e) Graph $E$ as a function of $r$

Key Concepts

Visualization of Electric Field Lines and Graphing E as a Function of r

Drawing electric field lines provides a qualitative understanding of the field's direction and magnitude, especially in symmetric configurations. Graphing the electric field as a function of distance from the center of a spherical charge distribution helps illustrate changes in field strength in different regions, such as being non-zero within the cavity and zero inside the conductor, and then following an inverse-square law at distances outside the conductor.

Electric Field in Spherical Symmetry

The electric field in systems with spherical symmetry can be calculated for different regions using Gauss's Law. The field behaves differently inside the cavity, within the conducting material (where it is zero), and outside the conductor, often simplifying to expressions that depend on the net enclosed charge and the distance from the center.

Surface Charge Density

Surface charge density is defined as the amount of electric charge per unit area on a surface. In the context of a spherical shell, it is calculated by dividing the total induced charge on that surface by the area of the sphere (4?r²), providing insight into how charge is distributed spatially over the surfaces.

Electrostatic Properties of Conductors

Conductors in electrostatic equilibrium exhibit distinctive features; notably, the electric field within the bulk of a conductor is zero and any excess charge resides on its surface. This behavior is due to the free movement of charges within conductors, which rearrange themselves until the internal electric field is neutralized.

Gauss's Law

Gauss's Law is a fundamental principle in electromagnetism stating that the total electric flux through a closed surface is proportional to the enclosed charge. This law is particularly useful in problems with high symmetry, such as spherical symmetry, where it allows the determination of the electric field magnitude in different regions by simply integrating over a Gaussian surface.

Induced Charge Distribution in Spherical Shells

When a charge is placed inside a spherical cavity within a conductor, it induces surface charges on the inner and outer surfaces. The induced charges will arrange such that the inner surface acquires a charge that neutralizes the field within the conductor, while the remainder of the total charge appears on the outer surface, ensuring overall charge conservation.
