A conductor consists of a circular loop of radius R and two...

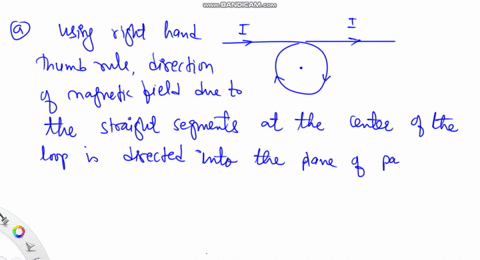

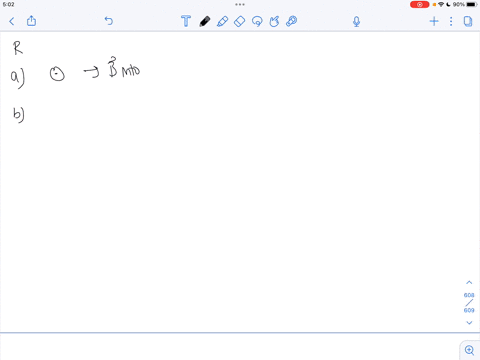

A conductor consists of a circular loop of radius $R$ and two long, straight sections as shown in Figure $\mathrm{P} 30.7 .$ The wire lies in the plane of the paper and carries a current $I$ . (a) What is the direction of the magnetic field at the center $r$ . of the loop? (b) Find an expression for the magnitude of the magnetic field at the center of the loop.

Key Concepts

Right-Hand Rule

The right?hand rule is a method used to determine the direction of the magnetic field produced by a current-carrying conductor. For a circular current loop, if you curl the fingers of your right hand in the direction of the current, your thumb points in the direction of the magnetic field at the center of the loop.

Biot–Savart Law

The Biot–Savart Law explains how a small segment of current contributes to the magnetic field at a point in space. It is especially useful for calculating the magnetic field due to parts of a current-carrying conductor with complex shapes, such as circular loops and straight segments, by integrating these contributions over the whole conductor.

Magnetic Field of a Circular Current Loop

For a circular loop carrying current, the field at the center can be calculated by integrating the contributions from each current element along the loop. The resulting expression shows that the magnetic field is directly proportional to the current and inversely proportional to the radius of the loop, and its direction is given by the right-hand rule.

Superposition Principle in Magnetism

The superposition principle states that the net magnetic field created by multiple current carrying segments is the vector sum of the fields produced by each individual segment. This principle is crucial when dealing with composite conductors, such as a circular loop connected to straight sections, where the contributions from each part must be added to find the overall field at a point.
