A copper rod and a steel rod are different in length by 5.00 cm at 0^∘ C . The rods are warmed a

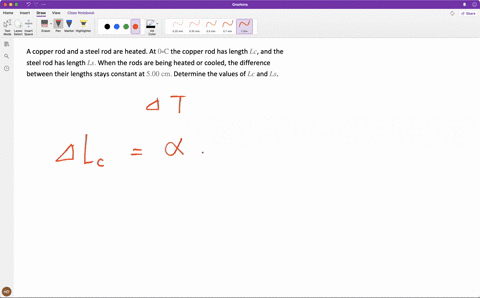

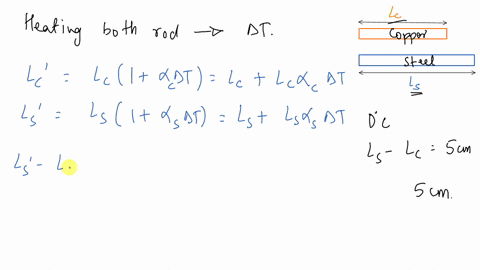

step 1 Now really what this question is asking, if delta L copper can equal delta L steel. And you can

A copper rod and a steel rod are different in length by 5.00...

A copper rod and a steel rod are different in length by 5.00 $\mathrm{cm}$ at $0^{\circ} \mathrm{C} .$ The rods are warmed and cooled together. (a) Is it possible that the length difference remains constant at all temperatures? Explain. (b) If so, describe the lengths at $0^{\circ} \mathrm{C}$ as precisely as you can. Can you tell which rod is longer? Can you tell the lengths of the rods?

Key Concepts

Thermal Expansion

Thermal expansion is the phenomenon in which materials change their dimensions—length, area, or volume—in response to temperature changes. As temperature increases, most materials expand because the atoms vibrate more and move further apart, affecting measurements and engineering applications.

Linear Thermal Expansion Formula

The linear thermal expansion formula, L = L?(1 + ??T), relates the change in length of a material to its original length L?, the temperature change ?T, and the coefficient of linear expansion ?. This formula is a foundational tool in predicting how objects will behave with temperature variations.

Coefficient of Thermal Expansion

The coefficient of thermal expansion, represented as ?, is a material-specific property that quantifies how much a material expands per unit length per degree change in temperature. Differences in ? between materials are crucial in designs involving composite materials, as mismatches can lead to stresses or deformations when subjected to temperature changes.

Invariance of Length Difference

The invariance of the length difference between two materials upon temperature change requires that the rods expand proportionally to their lengths. For the difference to remain constant at all temperatures, the ratio of the coefficients of thermal expansion must be such that the additional length gained from expansion exactly offsets differences in initial lengths. This condition generally imposes a precise relation between the initial lengths and the material properties, indicating a uniquely determined setup.
