A crate of mass 80 kg is held in the position shown....

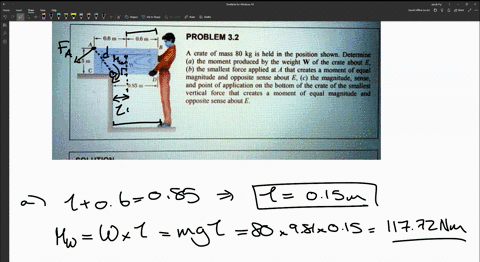

A crate of mass $80 \mathrm{kg}$ is held in the position shown. Determine
$(a)$ the moment produced by the weight $\mathrm{W}$ of the crate about $E,$
$(b)$ the smallest force applied at $B$ that creates a moment of equal magnitude and opposite sense about $E .$
(Figure cant copy)

Key Concepts

Moment (Torque)

Moment, or torque, is the measure of the tendency of a force to rotate an object about an axis or pivot. It is calculated as the product of a force and the perpendicular distance (lever arm) from the line of action of that force to the pivot point. Understanding moments is essential in mechanics when analyzing rotational equilibrium or the balance of forces in systems.

Lever Arm

The lever arm is the perpendicular distance from the axis of rotation to the line of action of a force. It directly influences the magnitude of the moment produced by the force; a longer lever arm results in a greater moment for the same force. This concept is fundamental in determining the effectiveness of a force in producing rotation.

Rotational Equilibrium

Rotational equilibrium occurs when the net moment (or torque) about any pivot or axis is zero, meaning there is no net tendency for the object to rotate. This principle is crucial in statics and engineering, as it ensures that all applied forces result in a balanced system, preventing rotational acceleration.

Force Analysis

Force analysis involves breaking down the different forces acting on a body and understanding their points of application and directions. This analysis is vital for calculating moments and ensuring equilibrium in mechanical systems, allowing for the determination of unknown forces or moments in structural and mechanical problems.
