A cyclic process for 1 mole of an ideal gas is shown in the $V-T$ diagram. The work done in $A B, B C$ and $C A$ respectively are: (a) $0, R T_{1} \ln \left|\frac{V_{1}}{V_{2}}\right|, R\left(T_{1}-T_{2}\right)$ (b) $R\left(T_{1}-T_{2}\right), R, R T_{1} \ln \left|\frac{V_{1}}{V_{2}}\right|$ (c) $0, R T_{2} \ln \left|\frac{1 / 2}{\ddot{V}_{1}}\right|, \frac{R T_{1}}{V_{1}}\left(V_{1}-V_{2}\right)$ (d) $0, R T_{2} \ln \left|\frac{V_{1}}{V_{2}}\right|, R\left(T_{2}-T_{1}\right)$

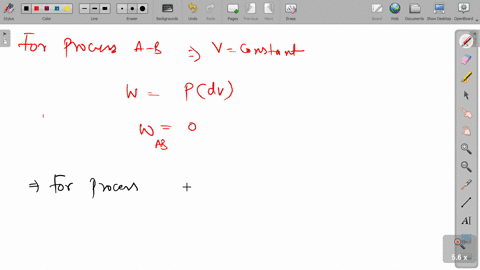

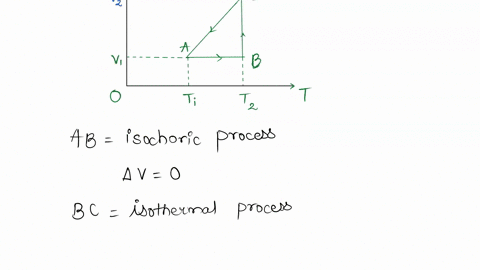

A cyclic process for 1 mole of an ideal gas is shown in the $V-T$ diagram. The work done in $A B, B C$ and $C A$ respectively are:
(a) $0, R T_{1} \ln \left|\frac{V_{1}}{V_{2}}\right|, R\left(T_{1}-T_{2}\right)$
(b) $R\left(T_{1}-T_{2}\right), R, R T_{1} \ln \left|\frac{V_{1}}{V_{2}}\right|$
(c) $0, R T_{2} \ln \left|\frac{1 / 2}{\ddot{V}_{1}}\right|, \frac{R T_{1}}{V_{1}}\left(V_{1}-V_{2}\right)$
(d) $0, R T_{2} \ln \left|\frac{V_{1}}{V_{2}}\right|, R\left(T_{2}-T_{1}\right)$

Key Concepts

Process Diagrams and Path Dependence

Process diagrams, such as P-V or T-V diagrams, are graphical representations of thermodynamic processes. While the area under a curve in a P-V diagram directly represents the work done, other diagrams like the T-V diagram do not directly yield work values and require additional steps using the ideal gas law. Understanding that work is path dependent is vital when analyzing cyclic processes, as each segment’s characteristics must be individually considered to correctly determine the overall work done.

Thermodynamic Work

Thermodynamic work in a process is defined as the energy transferred that results from a change in volume against an external pressure, expressed as the integral ?P dV. The work done is dependent on the path followed during the process, meaning that different paths connecting the same initial and final states can result in different amounts of work. This path dependence makes careful analysis of each segment of a process important in solving thermodynamic problems.

Cyclic Process

A cyclic process refers to a sequence of thermodynamic changes that eventually return a system to its initial state. In such cycles, the net change in internal energy over one complete cycle is zero, which means that the total work done by the system is exactly equal to the net heat exchanged. This concept is fundamental in understanding engines and refrigerators where the repetition of cycles governs performance.

Ideal Gas Law

The ideal gas law, given by PV = nRT, is a crucial relationship that connects pressure, volume, and temperature for an ideal gas. It provides the basis for analyzing gas behavior during various thermodynamic processes by allowing one to determine one state variable when the other two are known. Its application is essential in linking process diagrams with quantitative calculations of work and heat.
