A cylinder containing 1 kg of ammonia has an externally loaded piston. Initially the ammonia is

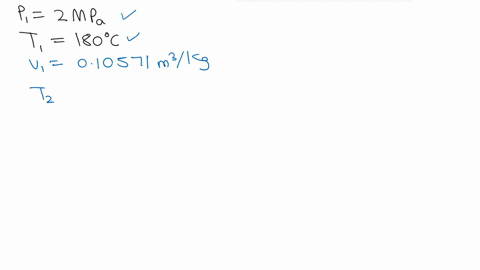

step 1 state 1 temperature and pressure where b1 is equal to 0 .10571 meter cube per kilogram in state

A cylinder containing 1 kg of ammonia has an externally...

A cylinder containing $1 \mathrm{kg}$ of ammonia has an externally loaded piston. Initially the ammonia is at 2 MPa and $180^{\circ} \mathrm{C}$. It is now cooled to saturated vapor at $40^{\circ} \mathrm{C}$ and then further cooled to $20^{\circ} \mathrm{C}$, at which point the quality is $50 \%$. Find the total work for the process, assuming a piecewise linear variation of $P$ versus $V$

Key Concepts

Thermodynamic Properties of Pure Substances

This concept involves understanding how properties such as pressure, temperature, specific volume, and enthalpy describe the state of a substance. It includes the relationships found in property tables or phase diagrams for substances like ammonia, which are essential in determining the state (saturated, superheated, compressed) of the fluid in various processes.

Saturation and Quality in Two?Phase Mixtures

Quality is a measure of the mass fraction of vapor in a two-phase mixture, with the remainder being liquid. In the context of saturated conditions, knowing the quality helps in determining the overall specific volume and energy state of the mixture. This is crucial when a process involves phase changes as the fluid is cooled or heated, since properties like specific volume vary significantly between the liquid and vapor phases.

Calculation of Work in Piston-Cylinder Processes

In thermodynamics, the work done by or on a system undergoing a process in a piston-cylinder is typically calculated by integrating the pressure with respect to volume change (W = ? P dV). Understanding how to evaluate this integral, particularly when the pressure varies nonlinearly or piecewise linearly with volume, is essential for determining the work associated with processes in closed systems like a cylinder with a piston.

Piecewise Linear Process Analysis

This concept refers to approximating the process path by breaking it into segments over which the pressure-volume relationship is assumed to vary linearly. This simplifies the calculation of work by allowing the integration to be performed over simple linear segments, with the total work being the sum of the work done in each segment.
