A cylinder fitted with a piston contains 0.5 kg of R-134a at 60^∘ C, with a quality of 50 percen

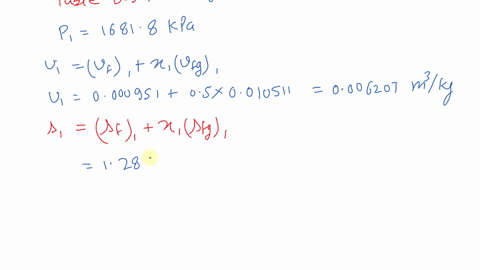

step 1 In this problem, we have R134A. We have a half a kilogram of it, and it's initially at 60 degree

A cylinder fitted with a piston contains 0.5 kg of R-134a at...

A cylinder fitted with a piston contains $0.5 \mathrm{kg}$ of R-134a at $60^{\circ} \mathrm{C}$, with a quality of 50 percent. The R-134a now expands in an internally reversible polytropic process to ambient temperature $20^{\circ} \mathrm{C}$ at which point the quality is $100 \%$. Any heat transfer is with a constant-temperature source, which is at $60^{\circ} \mathrm{C}$. Find the polytropic exponent $n$ and show that this process satisfies the second law of thermodynamics.

Key Concepts

Second Law of Thermodynamics

The second law of thermodynamics asserts that the overall entropy of an isolated system can never decrease, indicating the natural direction of processes. In the context of thermodynamic processes, compliance with the second law is evaluated by ensuring that the total change in entropy, which includes contributions from both the system and its surroundings, is non-negative for any spontaneous or reversible process.

Saturation Properties

Saturation properties refer to the thermodynamic properties of a substance at the phase change boundary, such as the saturation temperature and pressure where liquid and vapor coexist. Understanding these properties is fundamental when analyzing processes involving phase transitions, as they provide the baseline conditions for evaluating the behavior of substances in two-phase mixtures.

Polytropic Process

A polytropic process in thermodynamics is one that satisfies the relation PV^n = constant, where P is pressure, V is volume, and n is the polytropic exponent. This concept is widely used to model processes that are neither purely isothermal nor adiabatic, by incorporating an intermediate amount of heat transfer. The value of n determines the nature of the process and is a key parameter in analyzing the work done during the process.

Quality in Two?Phase Mixtures

Quality is a parameter that specifies the mass fraction of vapor in a saturated liquid-vapor mixture, indicating the proportion of the substance that is in the vapor state. It is crucial for characterizing two-phase systems and for calculating the thermodynamic properties, such as specific volume and internal energy, of mixtures undergoing phase change.
