A cylindrical copper rod of length 1.2 m and cross-sectional area 4.8 cm^2 is insulated to pre

step 1 So in this question it is given to us that there is a cylindrical copper rod that has a length L

A cylindrical copper rod of length 1.2 m and...

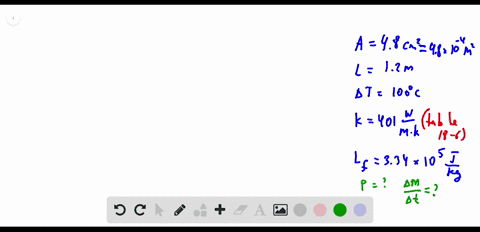

A cylindrical copper rod of length $1.2 \mathrm{~m}$ and cross-sectional area $4.8 \mathrm{~cm}^{2}$ is insulated to prevent thermal energy from being transferred through its surface. The ends are maintained at a temperature difference of $100^{\circ} \mathrm{C}$ by having one end in a water-ice mixture and the other in boiling water and steam. (a) Find the rate at which thermal energy is conducted along the rod. (b) Find the rate at which ice melts at the cold end.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Thermal Conductivity

Thermal conductivity is a material-specific parameter that quantifies how readily heat is conducted through the substance. It is a key factor in determining the efficiency of heat energy transfer in materials, with higher thermal conductivity indicating more effective conduction of thermal energy within the medium.

Latent Heat of Fusion

The latent heat of fusion is the amount of energy required to change a unit mass of a substance from a solid to a liquid phase at constant temperature, typically during melting. This concept is crucial for converting the rate of heat energy conduction into the rate at which a material, such as ice, undergoes phase change.

Fourier's Law

Fourier's law of thermal conduction states that the rate of heat transfer through a material is proportional to the negative gradient in temperature and the area through which the heat flows. This fundamental principle is used to calculate the heat conduction rate in solids by considering the material's thermal conductivity, the cross-sectional area, and the temperature difference across a given length.
