A damped L C circuit consists of a 0.14-μF capacitor and a 20-mH inductor with resistance 1.7 Ω.

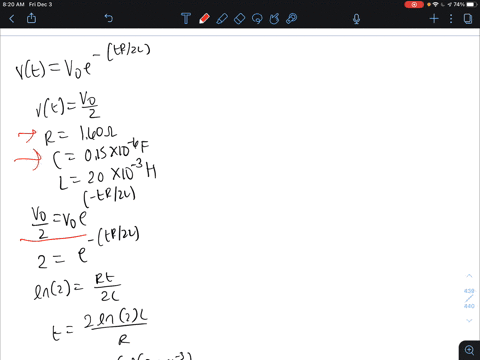

step 1 Good day everyone. So here for our solution we have R is equals to 1 .5 ohms. We have L is equal

A damped L C circuit consists of a 0.14-μF capacitor and a...

A damped $L C$ circuit consists of a $0.14-\mu \mathrm{F}$ capacitor and a $20-\mathrm{mH}$ inductor with resistance $1.7 \Omega$. How many oscillation cycles will occur before the peak capacitor voltage drops to half its initial value?

Key Concepts

Logarithmic Decrement

Logarithmic decrement is a measure of the rate at which oscillations decrease in amplitude in a damped system. It is defined as the natural logarithm of the ratio of successive peak amplitudes. This concept provides a direct means to determine the number of oscillation cycles required for the amplitude to decay by a certain factor, such as reducing to half its initial value.

Damped Resonance Frequency

In an underdamped system, the resonant or natural frequency of oscillation is modified by the damping. The damped resonance frequency is slightly lower than the undamped natural frequency and is determined by the circuit parameters. Understanding this frequency is essential for relating the time domain decay (given by exponential decay and logarithmic decrement) to the number of oscillation cycles.

Damped Harmonic Oscillator

This concept refers to a system where oscillations occur with an amplitude that decreases over time due to the presence of dissipative forces (like resistance in an electrical circuit or friction in a mechanical system). In the context of an LC circuit with resistance, the energy stored in the inductor and capacitor diminishes because part of it is converted to heat, causing the oscillations to gradually fade out.

Exponential Decay

Exponential decay describes the process by which a quantity decreases at a rate proportional to its current value. In a damped circuit, the amplitude of oscillation decays exponentially with time, meaning that after each cycle, the peak values are reduced by a fixed multiplicative factor. This behavior is key to calculating how many cycles it will take for the amplitude to reach a specified fraction of its initial value.
