A dehumidifier receives a flow of 0.25 kg / s dry air at 35^∘ C, 90 % relative humidity, as sho

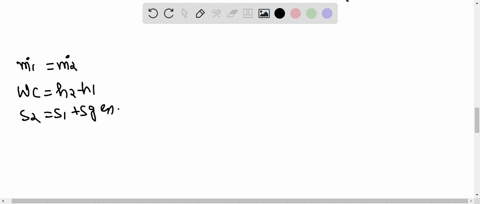

step 1 So let's solve this question. So in this question, we have WC equals to H2 minus H1. That equals

A dehumidifier receives a flow of 0.25 kg / s dry air at...

A dehumidifier receives a flow of $0.25 \mathrm{~kg} / \mathrm{s}$ dry air at $35^{\circ} \mathrm{C}, 90 \%$ relative humidity, as shown in Fig. P11.107. It is cooled down to $20^{\circ} \mathrm{C}$ as it flows over the evaporator and then is heated up again as it flows over the condenser. The standard refrigeration cycle uses $\mathrm{R}-410 \mathrm{a}$ with an evaporator temperature of $-5^{\circ} \mathrm{C}$ and a condensation pressure of $3000 \mathrm{kPa}$. Find the amount of liquid water removed and the heat transfer in the cooling process. How much compressor work is needed? What is the final air exit temperature and relative humidity?

Key Concepts

Psychrometrics

This concept deals with the properties of humid air and the analysis of air-water vapor mixtures. It involves understanding parameters such as dry-bulb temperature, wet-bulb temperature, relative humidity, and moisture content (or humidity ratio). Psychrometrics is crucial for processes like dehumidification, where cooling the air below its dew point leads to condensation of moisture.

Dehumidification Process

Dehumidification is the process of removing moisture from the air by cooling it to below its dew point, causing the excess water vapor to condense into liquid water. This process is important in many applications including climate control and industrial drying, and it involves analyzing both mass and energy balances to determine how much water is removed and the associated heat transfers.

Refrigeration Cycle

The refrigeration cycle is a thermodynamic cycle that uses a refrigerant circulating through components such as the compressor, condenser, expansion valve, and evaporator to remove heat from a space or a process. It is fundamental in air conditioning and dehumidification systems, providing the necessary cooling to achieve condensation and heat extraction.

Energy Balances in Air Conditioning Systems

This concept involves applying the principles of energy conservation to calculate heat transfers during the cooling and heating processes in systems like dehumidifiers. It considers both sensible heat (related to temperature change) and latent heat (associated with phase change), enabling the determination of system performance and efficiency.

Compressor Work

Compressor work refers to the energy required to compress the refrigerant within the refrigeration cycle. It is calculated using thermodynamic relations specific to the refrigerant and operating conditions, and it is a key component in assessing the overall efficiency and performance of refrigeration and dehumidification systems.
