A diesel engine has a bore of 0.1 m, a stroke of 0.11 m, and a compression ratio of 19: 1 nunnin

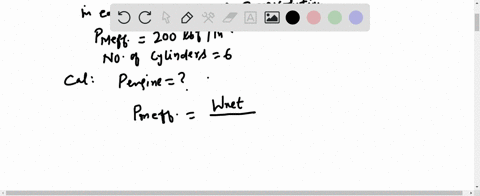

step 1 Hello friend. Here it is given our diesel engine has bowl of 0 .1 meter and a stroke of length 0

A diesel engine has a bore of 0.1 m, a stroke of 0.11 m, and...

A diesel engine has a bore of $0.1 \mathrm{m},$ a stroke of $0.11 \mathrm{m},$ and a compression ratio of 19: 1 nunning at 2000 RPM (revolutions per minute). Each cycle takes two revolutions and has a mean effective pressure of $1400 \mathrm{kPa}$. With a total of 6 cylinders, find the engine power in $\mathrm{kW}$ and horsepower, hp.

Key Concepts

Cylinder Displacement

Cylinder displacement is a measure of the total volume swept by all the pistons in an engine. It is calculated using the engine’s geometry (bore and stroke) for each cylinder and then summing or multiplying by the number of cylinders. This volume is a key parameter in determining how much air–fuel mixture can be burned per cycle, impacting the engine’s power output.

Mean Effective Pressure (MEP)

Mean effective pressure is the average pressure that acts on the piston during a complete engine cycle and is a simplifying parameter used to quantify the work produced per cycle. It abstracts away the variability of pressure during combustion into a single value, which, when multiplied by the displacement, gives an estimate of the work done in that cycle.

Engine Cycle and RPM Conversion

The engine cycle, particularly in a four-stroke engine, requires two revolutions for a complete cycle, meaning that power-producing events occur once every two revolutions. Converting engine speed from RPM to cycles per second (or per minute) is crucial for determining how many times the engine produces work in a given period, which is integral to calculating overall power output.

Engine Power Calculation

Engine power calculation involves combining the work done per cycle (obtained through the product of MEP and displacement) with the frequency of these cycles (derived from engine speed and the nature of the engine cycle) across all cylinders. Finally, the resulting work per unit time is converted into practical power units such as kilowatts and horsepower.
