Question
A differential element taken from a curved bar is shown in the figure. Show that $d N / d \theta=V, d V / d \theta=-N$ $d M / d \theta=-T,$ and $d T / d \theta=M$
Step 1
For the equilibrium of forces in the x and y directions, we have the following equations: \[ \begin{align*} N \cos \frac{d\theta}{2} + V \sin \frac{d\theta}{2} - N - dN \cos \frac{d\theta}{2} - V - dV \sin \frac{d\theta}{2} &= 0 \quad \text{(1)} \\ N \sin Show more…
Show all steps
Your feedback will help us improve your experience
Hast Aggarwal and 91 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

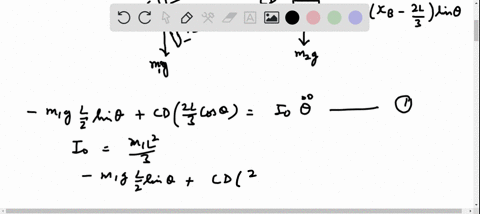

Determine the system equation of motion in terms of the variable $\theta$ shown in the figure. Assume small angular motion of bar $O A,$ and neglect the mass of $\operatorname{link} C D$

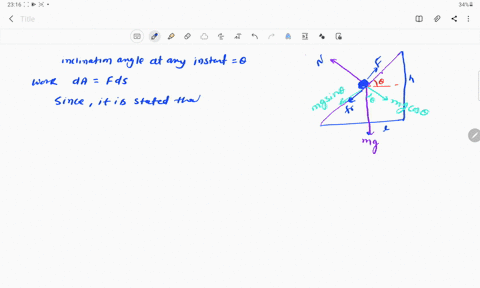

Let $F$ makes an angle $\theta$ with the horizontal at any instant of time (Fig.). Newton's second law in projection form along the direction of the force, gives: $F=k m g \cos \theta+m g \sin \theta$ (because there is no acceleration of the body.) As $\vec{F} \uparrow \uparrow d \vec{r}$ the differential work $d A=\vec{F} \cdot d \vec{r}=F d s$, (where $=k m g d s(\cos \theta)+m g d s$ $k m g d x+m g d y$ Hence, $=k m g l+m g h=m g(k l+h)$
Physical Fundamentals Of Mdchanics
Laws of Conservation of Energy, Momemtum, and Angular Momentum
Consider a rapidly spinning gyroscope whose axis is precessing uniformly in a horizontal circle of radius $r,$ as shown in Fig. 11.10 Apply $\vec{\tau}=d \vec{L} / d t$ to show that the angular speed of precession about the vertical axis through the center of the circle is $m g r / L$.
