A door closer on a door allows the door to close by itself,...

A door closer on a door allows the door to close by itself, as shown in the figure The door claser consists of a return spring attached to an oil-filled damping piston. As the spring pulls the piston to the right, teeth on the piston rod engage a gear, which rotates and causes the door to close. Should the system be underdamped, critically damped, or overdamped for the best performance (where the door closes quickly without slamming into the frame)?

Key Concepts

Damping in Dynamic Systems

Damping refers to the mechanism by which energy is removed from an oscillating system, affecting its rate of decay and stability. In mechanical and control systems, damping can be categorized as underdamped, critically damped, or overdamped, each influencing the transient response – the way the system returns to equilibrium after a disturbance.

Critical Damping

Critical damping is the ideal damping scenario where the system returns to its equilibrium position in the shortest possible time without any overshoot or oscillation. In applications where a quick yet smooth return to rest is essential, such as in door closers, critical damping ensures that the door closes rapidly without slamming into the frame.

System Response Optimization

Optimizing the transient response of a system involves balancing speed and stability. For practical applications like door closing mechanisms, selecting the proper damping level, such as critical damping, prevents excessive oscillatory behavior while maintaining a quick return to equilibrium, thus ensuring both efficiency and safety.

Transcript

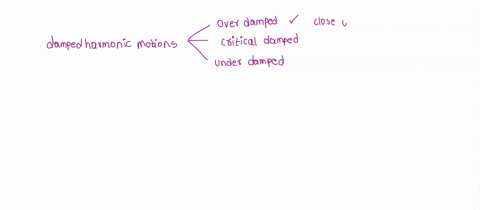

00:01 So which one is best for a door? we have over damping, critical damping, and underdamping.

00:06 So for over damping, it'll essentially cause the door, causes, we can say causes door to open or close very slowly.

00:28 In this case, it'll reduce the back and forth oscillations.

00:33 So when the door closes, or opens, it'll open and close very slowly.

00:38 And it will then return to its equilibrium position slowly as well.

00:44 Cause the door to open, close, we could say slash return to equilibrium position very slowly as well.

00:59 For critical damping, here we have a, essentially, this would cause this cause its door to open, and close at a speed where the door will not essentially move past equilibrium position after being closed or we can say opened.

01:52 So if you were to open the door and then let go, the door would swing back.

01:58 Would swing back at a moderate speed.

02:03 However, once it reached that equilibrium position or that closed position, it will stop.

02:09 The actual door will stop and it will be essentially perfect.

02:13 There isn't any movement past that equilibrium positions, such as with a door that has underdamping.

02:25 So with underdamping, we can say causes door to move quickly.

02:42 We can say moves, say somewhat freely past equilibrium position.

02:57 And this is somewhat like a bathroom door in a restaurant where you kind of push and then you let go.

03:07 And it sometimes as the door closes, it's closing so fast that it hits the equilibrium position and then moves in the opposite direction...
