From Fig. 33-2, approximate the (a) smaller and (b) larger
wavelength at which the eye of a standard observer has half the eye’s
maximum sensitivity. What are the (c) wavelength, (d) frequency,
and (e) period of the light at which the eye is the most sensitive?

Key Concepts

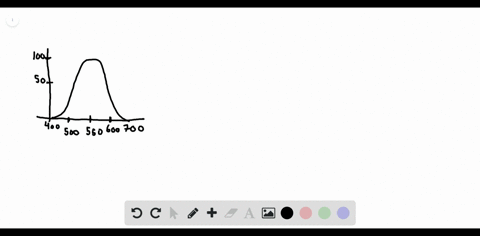

Standard Observer’s Visual Sensitivity Curve

This is the graph that represents how the human eye’s sensitivity to light varies with wavelength under well-lit conditions (photopic vision). The curve shows a peak sensitivity at a particular wavelength and drops off on either side, indicating that the eye is more responsive to certain wavelengths of light than others.

Full Width at Half Maximum (FWHM) in Light Sensitivity Curves

FWHM refers to the range of wavelengths over which the sensitivity of the eye is at least half of its maximum value. It is used to characterize the bandwidth of the eye’s response, indicating both the shorter (smaller) and longer (larger) wavelength limits where sensitivity falls to 50% of its peak.

Relationship between Wavelength, Frequency, and Period in Electromagnetic Waves

These fundamental properties of light are interrelated by the equation c = ?f, where c is the speed of light, ? is the wavelength, and f is the frequency. The period, which is the time for one complete wave cycle, is the reciprocal of the frequency. This relationship allows conversion between the wavelength at which the eye is most sensitive and the corresponding frequency and period of the light.

Visible Spectrum

This is the portion of the electromagnetic spectrum that human eyes can detect. It typically ranges from about 400 nm to 700 nm. The position of the maximum sensitivity within this range is crucial for understanding how effectively the eye can respond to different lighting conditions.
