(a) Find the value of a single capacitor to replace the three capacitors in the diagram. (b) What is the potential difference across the $12 \mu \mathrm{F}$ capacitor at the left side of the diagram? (c) What is the charge on the $12 \mu \mathrm{F}$ capacitor to the far right side of the circuit?

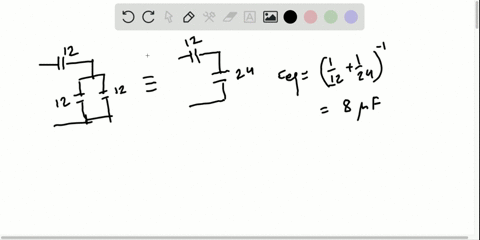

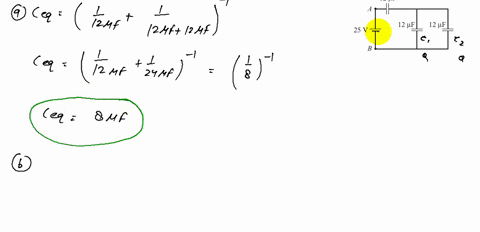

(a) Find the value of a single capacitor to replace the three capacitors in the diagram.
(b) What is the potential difference across the $12 \mu \mathrm{F}$ capacitor at the left side of the diagram?
(c) What is the charge on the $12 \mu \mathrm{F}$ capacitor to the far right side of the circuit?

Key Concepts

Charge on Capacitors

The charge on a capacitor is determined by the product of the capacitance and the voltage across it, expressed as Q = CV. This relationship is fundamental in circuit analysis as it relates the stored electrical energy to the physical properties of the capacitor and the applied potential difference. In series configurations, since the charge is the same on each capacitor, one can use this relation to compute individual voltages; in parallel, the charge divides among the capacitors, though the voltage remains constant.

Potential Difference in Capacitor Networks

This key concept centers on how the voltage (potential difference) is distributed among capacitors in a circuit. When capacitors are in series, the voltage across each capacitor is determined by the ratio of the charge to its capacitance, following the relationship V = Q/C. In parallel circuits, every capacitor sees the same voltage, which is equal to the applied voltage across the network. This understanding aids in calculating individual capacitor voltages within a larger circuit.

Equivalent Capacitance

This concept involves replacing a network of capacitors with a single capacitor that has the same voltage–charge behavior as the entire arrangement. The process depends on whether the capacitors are arranged in series, parallel, or a combination of both. By calculating the equivalent capacitance, one simplifies the analysis of complex circuits and makes it easier to determine overall properties like charge and voltage distribution.

Series and Parallel Configurations

Understanding how capacitors combine in series versus parallel is crucial. In series, the reciprocal of the equivalent capacitance is the sum of the reciprocals of individual capacitances, and the same charge appears on each capacitor while the voltage divides across them. In parallel configurations, the equivalent capacitance is simply the sum of all capacitances, with each capacitor experiencing the same voltage. These principles are essential in reducing complex circuits into simpler forms.
