(a) Find the voltage drop in an extension cord having a 0.0600-Ωresistance and through which 5.0

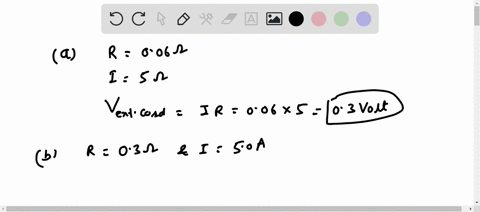

step 1 So in this problem for part A, we have resistance r equal 0 .06 oms, and the current is 5 ampute

(a) Find the voltage drop in an extension cord having a...

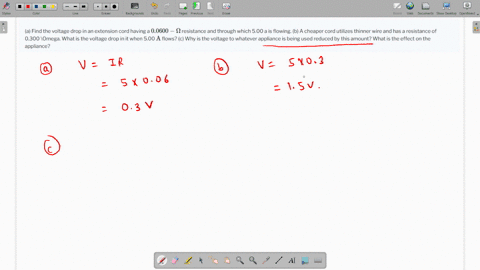

(a) Find the voltage drop in an extension cord having a $0.0600-\Omega$ resistance and through which $5.00 \mathrm{A}$ is flowing. (b) A cheaper cord utilizes thinner wire and has a resistance of $0.300 \Omega$. What is the voltage drop in it when $5.00 \mathrm{A}$ flows? (c) Why is the voltage to whatever appliance is being used reduced by this amount? What is the effect on the appliance?

Key Concepts

Effect on Electrical Appliances

The voltage reaching an appliance is reduced by the voltage drop in the wiring or extensions, meaning that the appliance receives a lower operating voltage than supplied. This can affect the performance and efficiency of the appliance, possibly leading to reduced effectiveness or operational issues.

Resistance

Resistance is a property of a material that quantifies how strongly it opposes the flow of electric current. It plays a key role in determining how much voltage is lost in a conductor or component, with higher resistance leading to a greater voltage drop for a given current.

Conductor Characteristics

The physical properties of a conductor, such as its thickness and material, determine its resistance. Thinner wires have higher resistance compared to thicker wires, which leads to a larger voltage drop when current flows through them, thereby impacting the overall voltage delivered to connected devices.

Ohm's Law

Ohm's Law is a fundamental principle in electricity stating that the voltage across a resistor is equal to the product of the current and its resistance (V = IR). This law is used to calculate the voltage drop across any resistor or similar element when a known current flows through it.

Voltage Drop

Voltage drop refers to the reduction in electrical potential along the path of a current flowing through a component or conductor, due to resistance. This decrease in voltage is significant as it affects the voltage that ultimately reaches electrical devices.
