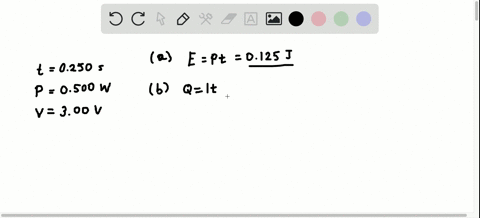

A flashing lamp in a Christmas earring is based on an $R C$ discharge of a capacitor through its resistance. The effective duration of the flash is 0.250 s, during which it produces an average 0.500 W from an average 3.00 V. (a) What energy does it dissipate? (b) How much charge moves through the lamp? (c) Find the capacitance. (d) What is the resistance of the lamp? (since average values are given for some quantities, the shape of the pulse profile is not needed.)

Key Concepts

RC Circuit Analysis

An RC circuit is one in which a capacitor discharges (or charges) through a resistor. The transient behavior of the circuit is often characterized by an exponential decay, where the time constant ? = RC determines how fast the voltage, current, and power fall off. Understanding the RC circuit is crucial for analyzing timing and power delivery in various applications.

Capacitor Energy Storage

A capacitor stores energy in an electric field and the energy stored is given by the equation E = ½CV². This concept is fundamental when analyzing circuits that involve charging and discharging capacitors because it links the physical capacitor’s properties to the energy that can be delivered or dissipated during operation.

Relationship Between Charge, Capacitance, and Voltage

The relation Q = CV connects the amount of charge stored by a capacitor to its capacitance and the voltage across it. This equation is essential in circuit analysis when determining one of these quantities given the other two, as it provides a straightforward way to relate electrical charge to potential energy available in the system.

Average Power and Energy Dissipation

The relation between power, energy, and time is a key concept in circuits where power is delivered over a period. Energy dissipated (or consumed) can be calculated as the product of average power and the duration of the event, hence E = P × t. This is useful for determining the total energy involved in transient phenomena such as a flash.

Ohm’s Law in Transient Circuits

Ohm’s Law, which states that V = IR, remains applicable in RC circuits during transient conditions. It helps in understanding how the resistor influences the current and, consequently, the rate at which the capacitor discharges. This relationship is pivotal in linking the observed voltage and power levels to the underlying resistance of the circuit.
