A flashlight on the bottom of a 4.00 m deep swimming pool sends a ray upward and at an angle so

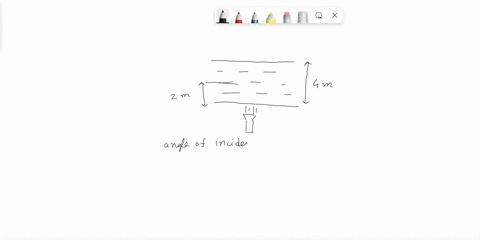

step 1 Hi, here in this given problem suppose this is the surface of water in the swimming pool, flashl

A flashlight on the bottom of a 4.00 m deep swimming pool...

A flashlight on the bottom of a $4.00 \mathrm{m}$ deep swimming pool sends a ray upward and at an angle so that the ray strikes the surface of the water $2.00 \mathrm{m}$ from the point directly above the flashlight. What angle (in air) does the emerging ray make with the water's surface? (Hint: To determine the angle of incidence, consider the right triangle formed by the light ray, the pool bottom, and the imaginary line straight down from where the ray strikes the surface of the water.)

Key Concepts

Snell's Law

Snell's Law is the fundamental principle that governs the refraction of light as it passes from one medium to another with different refractive indices. It states that the ratio of the sine of the angle of incidence to the sine of the angle of refraction is constant, being equal to the ratio of the indices of refraction of the two media. This law is essential for determining how light rays bend at an interface, such as from water to air.

Right Triangle Geometry

Right triangle geometry is used to relate the spatial distances traveled by a light ray to the angles it makes with the vertical and horizontal directions. By interpreting the path of the light ray as the hypotenuse of a right triangle, with one leg representing the vertical distance and the other representing the horizontal offset, one can calculate the angle of incidence (or deviation) using trigonometric ratios like tangent, sine, or cosine.

Index of Refraction

The index of refraction is a measure of how much a medium slows down light compared to a vacuum. It plays a crucial role in refraction by determining the extent to which a light ray will bend when entering a new medium. Knowing the indices of refraction for both media allows one to apply Snell's Law to relate angles within the different materials.

Relationship Between Angles of Incidence and Refraction

This concept focuses on the comparison and conversion of angles measured relative to the normal (perpendicular) to the interface and to the surface. Often, angles provided in problems are measured from the surface, so understanding how to convert between these measurements is important when applying Snell’s Law and solving for the direction of the emergent ray.
