A flow of 1 kg/s argon at 300 K and another flow of 1 kg / s CO2 at 1600 K both at 150 kPa are m

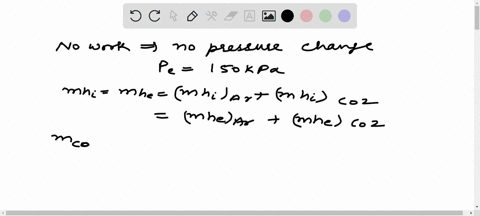

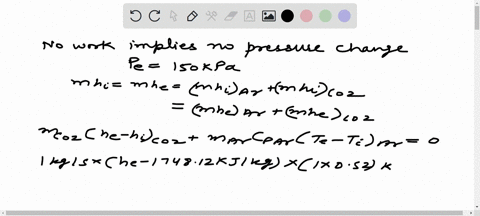

step 1 Hi, everybody. So for this one is what is the exit TP? Okay, so we need to find the exit energy.

A flow of 1 kg/s argon at 300 K and another flow of 1 kg / s...

A flow of 1 kg/s argon at 300 K and another flow of $1 \mathrm{kg} / \mathrm{s} \mathrm{CO}_{2}$ at $1600 \mathrm{K}$ both at $150 \mathrm{kPa}$ are mixed without any heat transfer. What is the exit $T, P ?$

Key Concepts

Mass Balance

Mass balance is the principle that the total mass entering a system must equal the total mass leaving the system. In this context, the mass flow rates of the argon and CO2 streams are added together to obtain the total mass flow rate at the exit, which is vital for calculating other energy properties of the mixed stream.

Energy Balance

The energy balance for an adiabatic mixing process asserts that the total energy (typically represented by enthalpy in open systems) entering the process is equal to the total energy leaving it. By weighting the enthalpy contributions of each stream by their respective mass flow rates, one can determine the exit stream's temperature, despite the different inlet temperatures.

Adiabatic Mixing

Adiabatic mixing means that there is no heat transfer to or from the surroundings during the mixing process. This assumption ensures that the only significant energy change arises from the mixing of streams with different thermal contents, allowing for a straightforward application of energy conservation to solve for the exit temperature.

Ideal Gas Behavior

Assuming ideal gas behavior simplifies the analysis as it allows the use of constant or well-defined specific heat values (cp) for each gas. This assumption is particularly useful in calculations involving energy balances where the enthalpy changes of the gases are related linearly to temperature changes.
