A flow of air at 5^∘ C, Φ=90 %, is brought into a house, where it is conditioned to 25^∘ C, 60 %

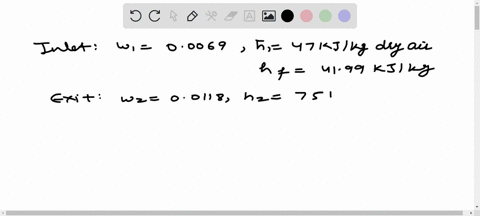

step 1 Hi everybody. So we need to find the flow of liquid necessary heat transfer both per kilogram dr

A flow of air at 5^∘ C, Φ=90 %, is brought into a house,...

A flow of air at $5^{\circ} \mathrm{C}, \Phi=90 \%,$ is brought into a house, where it is conditioned to $25^{\circ} \mathrm{C}, 60 \%$ relative humidity. This is done with a combined heater-evaporator where any liquid water is at $10^{\circ} \mathrm{C} .$ Find any flow of liquid and the necessary heat transfer, both per kilogram dry air flowing. Find the dew point for the final mixture.

Key Concepts

Psychrometrics

Psychrometrics is the study of the physical and thermodynamic properties of moist air. It deals with the relationships between temperature, humidity, mixing ratio, wet-bulb temperature, dew point, and enthalpy. Understanding these properties is essential in HVAC and air conditioning applications where air treatment involves both heating and moisture control.

Relative Humidity

Relative humidity is the ratio of the partial pressure of water vapor present in the air to the equilibrium vapor pressure of water at a given temperature. It indicates how close the air is to saturation and is crucial for determining whether condensation will occur when air is cooled or mixed.

Dew Point

The dew point is the temperature at which air becomes saturated with moisture when cooled at constant pressure, leading to condensation. It is a key concept in designing conditioning systems, as it helps determine the conditions under which water condensation or removal occurs.

Enthalpy of Moist Air

The enthalpy of moist air represents the total heat content per unit mass, comprising both the sensible heat associated with temperature and the latent heat due to water vapor content. This concept is used to assess the energy transfer during air conditioning processes where both heating and dehumidification or humidification may occur.

Mass and Energy Balances

Mass and energy balances involve accounting for the conservation of mass (such as water vapor and condensate) and energy in air conditioning systems. These principles are essential for determining the amount of liquid (condensed water) produced and the heat transfer required per kilogram of dry air during processes like mixing, heating, and dehumidification.
