A flow of moist air at 21^∘ C with 60 % relative humidity should be produced from mixing two dif

step 1 Hi, everybody. So, we need to find the two controls. One is a ratio of two mass flows. And the o

A flow of moist air at 21^∘ C with 60 % relative humidity...

A flow of moist air at $21^{\circ} \mathrm{C}$ with $60 \%$ relative humidity should be produced from mixing two different moist airflows. Flow 1 is at $10^{\circ} \mathrm{C}$ and $80 \%$ relative humidity; flow 2 is at $32^{\circ} \mathrm{C}$ and has $T_{\mathrm{wet}}=27^{\circ} \mathrm{C} .$ The mixing chamber can be followed by a heater or a cooler, as shown in Fig. P12.112. No liquid water is added, and $P=100$ kPa. Find the two controls- -one is the ratio of the two mass flow rates $\dot{m}_{a 1} / \dot{m}_{a 2}$ and the other is the heat transfer in the heater/cooler per kg dry air.

Key Concepts

Energy Balance in Heating/Cooling Processes

After mixing, the air stream may require adjustment of its temperature through heating or cooling. The energy balance concept involves calculating the amount of sensible heat that needs to be added or removed per unit mass of dry air to reach the final desired conditions. This ensures that the overall energy content of the moist air is correctly managed without altering its moisture content through condensation or evaporation beyond the design intent.

Relative Humidity and Humidity Ratio

Relative humidity is a measure of the current water vapor content relative to the maximum possible at a given temperature, while the humidity ratio quantifies the mass of water vapor per unit mass of dry air. These concepts are crucial in assessing how close a given air stream is to saturation and determining the moisture content in air mixing problems. They also help in deducing other properties from psychrometric relationships.

Psychrometric Properties of Moist Air

This concept involves understanding the physical and thermodynamic properties of moist air, such as dry-bulb temperature, wet-bulb temperature, relative humidity, and humidity ratio. These properties are interrelated and are typically depicted on a psychrometric chart. It is essential for analyzing air–water vapor mixtures and determining the conditions of the air for heating, cooling, and humidification/dehumidification processes.

Mixing Processes of Moist Air

Mixing processes involve combining two air streams that have different temperatures and moisture contents in order to achieve a desired final state. The analysis requires the application of conservation of mass (especially for water vapor and dry air) and energy balances. Successful mixing analysis ensures that the resulting air stream meets the specified set of conditions without the addition or removal of water in liquid form.

Transcript

0:00 Hi, everybody.

00:01 So, we need to find the two controls.

00:05 One is a ratio of two mass flows.

00:07 And the other is heat transfer and heat cooler per kilogram hour.

00:11 Okay.

00:12 So for this, it's going to, so your stone looks like this.

00:18 You're just curious about that.

00:20 Okay.

00:21 And so we have a continuous equation from this.

00:27 And it's going to be one.

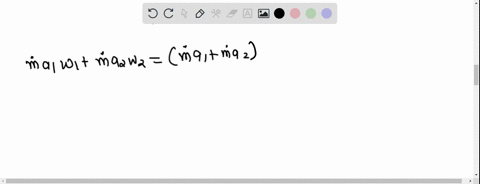

00:30 A1 plus w2, ma2, the second state, ma1 plus ma2 of the fourth, okay? and your four is here, actually.

00:45 Let me just draw that here.

00:47 So we got four, three, two, one.

00:53 Okay? anyway, so now i knew what that kind of looks like to help you.

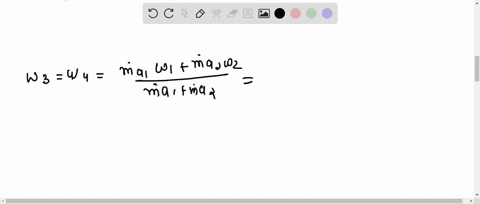

00:56 And now we have ma1 over ma2 plus w2 equals ma1 over ma2 plus ma1 over ma2 plus 1 w4.

01:11 Okay? and now we're just going to have ma1 equals ma2 equals x, okay? and so when we do that, we have x equals w4 minus w2 over w1 minus w4 equals 0 .0091 minus 0 .0091 minus 0 .0208 over 0 .006 minus 0 .0091.

01:47 So 3 .744 is your answer for this.

01:53 Okay.

01:54 And now we can do energy equation...
