A flow of moist air from a domestic fumace, state 1 in Fig. P 12.98 is at 120 F, 10 % relative h

step 1 Everybody's, we find the power needed for electric heater at the heat transfer to the flow rate

A flow of moist air from a domestic fumace, state 1 in Fig....

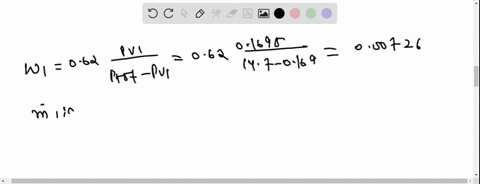

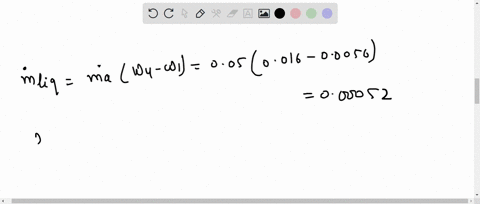

A flow of moist air from a domestic fumace, state 1 in Fig. $\mathrm{P} 12.98$ is at $120 \mathrm{F}, 10 \%$ relative humidity with a flow rate of $0.1 \mathrm{lbm} / \mathrm{s}$ dry air. 14.7 psia, generated from tap water at 60 F. $U_{\mathrm{P}}$ in the living room the flow comes out at state 4: 90 $\mathrm{F}, 60 \%$ relative humidity. Find the power needed for the electric heater and the heat transfer to the flow from state 1 to state 4.

Key Concepts

Psychrometrics

Psychrometrics is the study of the thermodynamic properties of moist air and the relationships between dry air, water vapor, and condensed water. It provides the framework for analyzing and designing heating, ventilation, and air conditioning (HVAC) systems by using parameters such as temperature, relative humidity, dew point, and specific humidity.

Steady-Flow Energy Balance

The steady-flow energy balance is a fundamental concept in thermodynamics applied to systems where fluid flows continuously through a control volume. It involves accounting for the energy changes due to mass flow, heat transfer, and work interactions, using enthalpy differences between the inlet and outlet states of the system.

Specific Enthalpy of Moist Air

The specific enthalpy of moist air is a measure of the energy per unit mass of the air-vapor mixture. It includes contributions from both the sensible heat of the dry air and the latent heat associated with the water vapor. Understanding this concept is critical for calculating how much energy is required to heat or cool air when its moisture content may also change.

Sensible and Latent Heat Transfer

Sensible heat transfer refers to the energy transfer that leads to a change in temperature of a substance without a phase change, while latent heat transfer involves energy exchange associated with phase changes, such as the condensation or evaporation of water. In applications like HVAC, both forms of heat transfer are important because heating or cooling moist air can affect both temperature and moisture content.
