(a) For a diverging lens (f=-20.0 cm), construct a ray diagram to scale and find the image dista

step 1 To draw the ray diagram, start with a horizontal line. And on that horizontal line, draw a verti

(a) For a diverging lens (f=-20.0 cm), construct a ray...

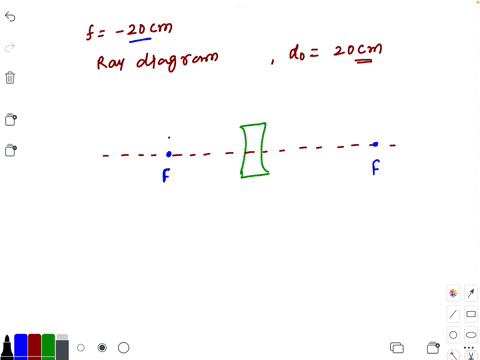

(a) For a diverging lens $(f=-20.0 \mathrm{cm}),$ construct a ray diagram to scale and find the image distance for an object that is $20.0 \mathrm{cm}$ from the lens. (b) Determine the magnification of the lens from the diagram.

Key Concepts

Ray Diagram Construction

A ray diagram is a graphical representation used to visualize how light rays interact with a lens to form an image. Key rays include one parallel to the principal axis (which appears to diverge from the focal point), one passing through the focal point (or its extension if the ray is refracted), and one that goes through the center of the lens (which continues in a straight line). Constructing an accurate ray diagram helps verify analytical solutions and provides insight into image characteristics.

Magnification

Magnification is defined as the ratio of the image height to the object height, and it can also be expressed as the negative ratio of the image distance to the object distance (m = -di/do). In diverging lenses, the magnification is less than one in magnitude, indicating that the image is reduced in size, and the positive sign signifies the image is upright relative to the object.

Diverging Lens

A diverging lens, often referred to as a concave lens, spreads out incident light rays. Its focal length is negative by convention, indicating that parallel rays of light appear to diverge from a virtual focal point. These lenses always produce virtual, upright, and diminished images regardless of the object distance.

Lens Equation and Sign Conventions

The lens equation, given by 1/f = 1/do + 1/di, relates the focal length (f), object distance (do), and image distance (di). In the context of diverging lenses, the focal length is negative, and careful adherence to sign conventions is crucial to correctly determine the position and nature of the image. Positive object distances and negative image distances typically result for virtual images in diverging lenses.
