A four-cylinder, four-stroke, spark-ignition engine operates...

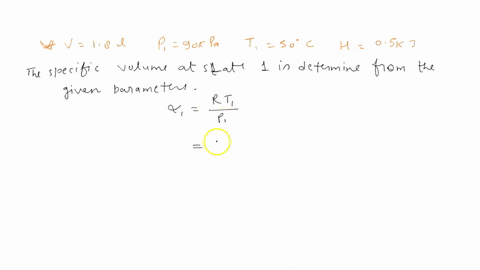

A four-cylinder, four-stroke, spark-ignition engine operates on the ideal Otto cycle with a compression ratio of 11 and a total displacement volume of $1.8 \mathrm{~L}$. The air is at $90 \mathrm{kPa}$ and $50^{\circ} \mathrm{C}$ at the beginning of the compression process. The heat input is $0.5 \mathrm{~kJ}$ per cycle per cylinder. Determine (a) the maximum temperature and pressure that occur during the cycle, $(b)$ the net work per cycle per cylinder and the thermal efficiency of the cycle, (c) the mean effective pressure, and ( $d$ ) the power output for an engine speed of 3000 rpm. Use constant specific heats with $c_{v}=0.821 \mathrm{~kJ} / \mathrm{kg} \cdot \mathrm{K}, c_{p}=1.108 \mathrm{~kJ} /$ $\mathrm{kg} \cdot \mathrm{K},$ and $k=1.35 .$

Key Concepts

Ideal Otto Cycle

The Ideal Otto Cycle is a thermodynamic cycle that models the idealized operation of a spark-ignition internal combustion engine. It consists of two adiabatic (isentropic) processes—the compression and expansion strokes—and two constant-volume processes—the heat addition and heat rejection processes. This cycle helps in understanding the relationships between pressure, volume, and temperature changes in an engine, and it provides a theoretical basis for calculating thermal efficiency and work output.

Four-Stroke Engine Cycle

A four-stroke engine cycle comprises four distinct processes: intake, compression, power (combustion), and exhaust. In a spark-ignition engine operating on the Otto cycle, the intake stroke fills the cylinder with air-fuel mixture, the compression stroke compresses the mixture, the power stroke results from the ignited mixture undergoing rapid expansion, and the exhaust stroke expels the spent gases. This sequence ensures that the engine converts chemical energy into mechanical work in a systematic manner.

Compression Ratio

The compression ratio is defined as the ratio of the volume of the cylinder when the piston is at the bottom dead center to the volume when the piston is at the top dead center. It is a key parameter in determining the efficiency and performance of an engine because higher compression ratios generally lead to higher thermal efficiency, although they are limited by the potential for engine knock in spark-ignition engines.

Thermal Efficiency

Thermal efficiency in the context of thermodynamic cycles is the ratio of the net work output of the cycle to the heat input. It is a measure of how effectively an engine converts the heat provided through fuel combustion into usable work output. For the Ideal Otto Cycle, thermal efficiency can often be related directly to the compression ratio and the specific heat ratio of the working fluid.

Mean Effective Pressure

Mean Effective Pressure (MEP) is a parameter used to compare the work output of an engine irrespective of its size. It is defined as the constant pressure that, if it acted on the piston during the power stroke, would produce the same net work output as the actual varying pressure. MEP provides a useful measure for assessing engine performance and is directly related to the engine’s displacement and cycle work.

Constant Specific Heats

The constant specific heats assumption implies that the specific heat capacities at constant volume (cv) and constant pressure (cp) remain constant over the temperature range of interest. This simplifies the analysis of the cycle by allowing the use of constant values in energy equations and state relationships, though it is an idealization and actual values may vary with temperature in a real engine.

Work and Power in Thermodynamic Cycles

Calculating work and power in thermodynamic cycles involves determining the net work per cycle from the thermodynamic processes and then scaling this work output by the engine's operating speed and the number of cylinders. Engine power output is found by multiplying the work per cycle by the number of cycles per unit time, which is influenced by engine speed and the four-stroke cycle’s inherent nature.
