A fuel gauge uses a capacitor to determine the height of the fuel in a tank. The effective dielectric constant $K_{\text { eff }}$ changes from a value of 1 when the tank is emply to a value of $K,$ the dielectric constant of the fuel, when the tank is full. The appropriate electronic circuitry can determine the effective dielectric constant of the combined air and fuel between the capacitor plates. Each of the two rectangular plates has a width $w$ and a length $L($ Fig. $\mathrm{P} 24.74) .$ The height of the fuel between the plates is $h$ . You can ignore any fringing effects. (a) Derive an expression for $K_{\text { eff }}$ as a function of $h$ . (b) What is the effective dielectric constant for a tank $\frac{1}{4}$ full, $\frac{1}{2}$ full, and $\frac{3}{4}$ full if the fuel is gasoline $(K=1.95) ?$ (c) Repeat part (b) for methanol $(K=33.0) .$ (d) For which fuel is this fuel gauge more practical?

Key Concepts

Weighted Averaging in Parallel Capacitor Configurations

When a capacitor is divided into regions with different dielectric constants in a parallel configuration (each region experiencing the same voltage across it), the effective dielectric constant can be obtained as an area-weighted average of the dielectric constants. This principle allows one to link a measurable electrical property, such as capacitance, to a physical measurement like the height or fraction of a material present. Such techniques are widely used in sensor design and monitoring applications.

Composite Dielectric Systems

Composite dielectric systems involve two or more dielectric materials occupying distinct regions within a capacitor. In many practical applications, the capacitor may be partially filled with one dielectric and partially with another. The overall or effective dielectric constant of the system is determined by the arrangement of the different regions—commonly treated via a weighted average or using series/parallel capacitor models. Understanding composite systems is essential for designing sensors that monitor changes in material composition or level.

Dielectric Materials

Dielectric materials are insulating substances that, when placed between the plates of a capacitor, affect the electric field and increase the capacitance by a factor equal to their dielectric constant. Different materials have different dielectric constants; for instance, air has a dielectric constant of approximately 1, whereas other materials like gasoline or methanol have higher values. This variation is critical in applications such as sensors, where the change in dielectric properties can be used to infer physical changes in the environment.

Parallel-Plate Capacitors

A parallel?plate capacitor consists of two conductive plates separated by a small distance. The capacitance is determined by the area of the plates, the distance between them, and the dielectric material that fills the space. The basic formula, C = K??A/d, shows how the dielectric constant (K) enhances the capacitance over the vacuum value. This concept is fundamental for understanding how the geometry and the materials involved affect the storage of electric charge.

Transcript

00:01 Hi, everybody.

00:01 So we need to find a drive the expression of k efficient as function h.

00:08 And so for a, we have c1 is going to be k, epsilon, not.

00:16 And let me get the epsilon not to look nice.

00:18 Epsilon not and o times over d.

00:29 And we have w, okay? and now we have c2, which equals epsilon, not wl minus h, d.

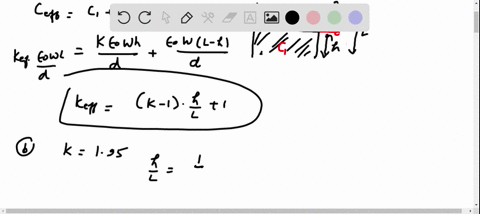

00:46 And now we can do c equation equals c1 plus c2 equals k -epsilon -not -w -h -d plus epsilon -w -h -d plus epsilon -l -l -1 -h -h.

01:04 Over d and we can have that equal to epsilon not w d um k h minus plus l minus h um and then we confer this to have epsilon w l d equals one plus kh over l minus h okay and that is your answer for a but now for b, we just have to find the k efficient.

01:41 So we have the k efficient equals.

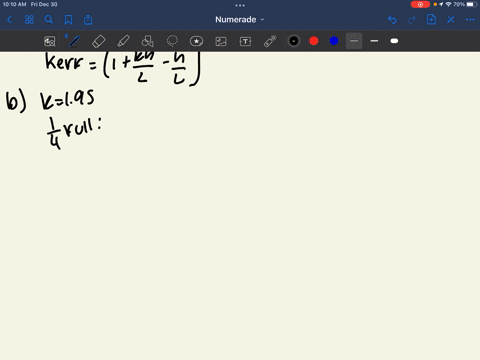

01:45 And this is at l, oops, when h equals l4, okay? so one plus 1 .95, okay, times l divided by four.

02:14 Over l, okay? and we're just using, so for this above equation, when it's asking about the k efficient, so i'm just going to raise this.

02:28 This is the k efficient and so k efficient, okay.

02:37 And so we have minus l divided by four over l, and we get 1.

02:46 Plus 1 .95 divided by 4 minus 1 4th, and we get 1 .24.

02:55 Okay? and we're not done.

02:58 We still have a little bit more to do...
