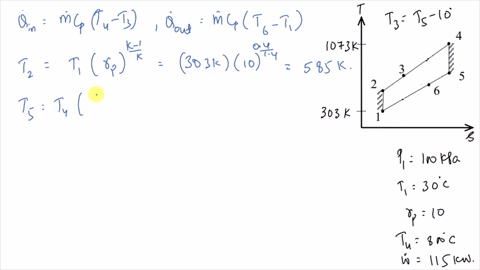

A gas turbine for an automobile is designed with a regenerator. Air enters the compressor of this engine at $100 \mathrm{kPa}$ and $30^{\circ} \mathrm{C}$. The compressor pressure ratio is 8 ; the maximum cycle temperature is $800^{\circ} \mathrm{C}$; and the cold airstream leaves the regenerator $10^{\circ} \mathrm{C}$ cooler than the hot airstream at the inlet of the regenerator. Assuming both the compressor and the turbine to be isentropic, determine the rates of heat addition and rejection for this cycle when it produces $115 \mathrm{~kW}$. Use constant specific heats at room temperature.

Key Concepts

Compressor Pressure Ratio

The compressor pressure ratio is the ratio of the pressure at the compressor outlet to the pressure at the compressor inlet. It plays a significant role in determining the cycle efficiency and the performance of the gas turbine, as higher pressure ratios generally lead to improved thermal efficiency but also impose design and material constraints.

Heat Addition and Rejection

Heat addition and heat rejection are key processes in any thermodynamic cycle, where energy is respectively supplied to and removed from the working fluid. In a gas turbine cycle, heat is added during the combustion process (or via external thermal energy in some systems) and rejected typically in the exhaust, and calculating these values is critical for determining work output and efficiency.

Constant Specific Heats

The assumption of constant specific heats implies that the specific heat capacities of the working fluid are considered invariant over the range of temperatures involved in the cycle. This simplification is typically used in preliminary analyses to avoid complex temperature-dependent integrations when calculating energy transfers during the cycle processes.

Isentropic Process

An isentropic process is an idealized thermodynamic process in which the entropy of the working fluid remains constant, implying reversible adiabatic conditions. This assumption is applied to both the compression and expansion processes in the cycle to simplify the analysis and provide a benchmark for the real performance of these components.

Regenerator

A regenerator is a heat exchanger integrated into a gas turbine cycle to recover waste heat from the turbine exhaust and preheat the compressed air before combustion. This process enhances the overall thermal efficiency of the cycle by reducing the amount of additional fuel required to reach the desired maximum cycle temperature.

Brayton Cycle

The Brayton cycle is the fundamental thermodynamic cycle for gas turbine engines, comprising stages of isentropic compression, constant-pressure heat addition, isentropic expansion, and constant-pressure heat rejection. Understanding this cycle is crucial for analyzing performance parameters such as work output, efficiency, and the interplay between pressure ratio and temperature limits.
