A golf ball weighs 0.102 Ibf and has a diameter of 1.7 in. A...

Key Concepts

Lift Coefficient

The lift coefficient is a dimensionless number that characterizes the effectiveness of an object's shape and spin in generating lift when moving through a fluid. It relates the dynamic pressure, reference area, and the resulting lift force, and is used to quantify how changes in spin (for example, backspin) affect the aerodynamic properties of the ball.

Magnus Effect

The Magnus effect refers to the phenomenon where a spinning object moving through a fluid experiences a force perpendicular to the direction of motion due to asymmetric airflow. This effect is particularly significant in sports where balls are given spin, such as in golf, as it modifies the expected landing point by generating an additional lift force that influences the ball's trajectory.

Aerodynamic Lift

Aerodynamic lift is the force generated perpendicular to the oncoming flow of air, often influenced by the shape and orientation of an object moving through a fluid. In the context of a spinning golf ball, lift arises due to the differential pressure created around the ball's surface, altering its flight path. Understanding lift is crucial for predicting how spin and ball design affect trajectory.

Projectile Motion

Projectile motion describes the two?dimensional motion of an object under the influence of gravity, where the horizontal motion remains uniform and the vertical motion is uniformly accelerated. This concept involves analyzing the trajectory, time of flight, and range by applying kinematic equations and is fundamental in predicting the behavior of any object launched into the air, such as a golf ball hit by a club.

Transcript

00:01 In this question, we're asked to find a couple of things about a golf ball, including its initial speed, as well as its maximum heights.

00:11 And we're given relatively little information.

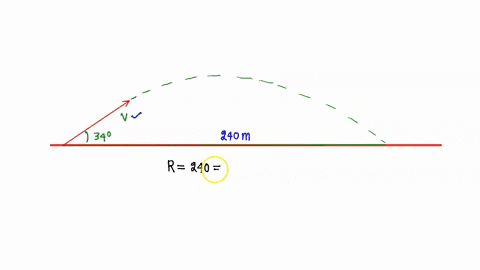

00:14 So we're given that the golf ball, the initial angle is, you know, 34 degrees.

00:23 And we are given that the range is 240 meters.

00:28 So the difference between the final and the initial positions in the x direction is the 240 meters.

00:39 And then we are asked to find those two things.

00:43 So we need to have a little bit of calculations in order to get to the answer here, since we're given so little information.

00:55 So let's start with the information that we do have.

00:58 So we know that the displacement in the x direction is 240, and we know that the acceleration in the y direction is negative 9 .81 meters per second squared.

01:14 And that's pretty much all we're given, you know, besides we also know the angle.

01:19 So let's look at the two directions, the x direction and the y direction, and see if we can come up with anything here in terms of equations.

01:32 So in the x -direction, remember we'd like to know the speed.

01:37 In order to find the speed, we take the displacement, so that's 240, and divide by time.

01:44 So that can be one equation.

01:46 That doesn't get us all the way to speed because we don't have time.

01:51 And then in the y direction, we could use acceleration is equal to v final minus v initial.

02:07 Over time.

02:11 And although we don't have a value for the speeds here, we know how they're related to each other.

02:18 So when a projectile lands at the same level, the initial speed in the y direction will be upwards.

02:24 The final speed in the y direction will be downwards, and they will be equal in magnitude, but opposite and direction from one another.

02:32 So a way to write that in terms of an equation, and i guess this can be one of our givens, is that the final is negative the initial.

02:46 So if i set that into this equation here, i get ay is equal to negative 2, vi ,y over t.

02:57 And again, that doesn't get us our speed because we don't have time, but at least we have another equation here to work with now.

03:10 So this will be our second equation.

03:14 And what you're going to notice here is that we now have two equations and two, actually three unknowns, right, t, vx and vi, y.

03:24 And so in order to solve this, we're going to need a third equation.

03:32 And the third equation should involve, you know, two or three of those variables.

03:38 So i think in terms of relating vx and vii, we can definitely do that, right? we can say that viy over vx opposite over adjacent is equal to tan 34 degrees.

04:00 So this can be our third equation.

04:05 So now we just need to solve these equations.

04:09 The first thing that i'm going to do is eliminate t.

04:14 So i'm going to eliminate t.

04:17 How am i going to do that? i'm going to solve equation one here for t.

04:29 So i get 240 over vx.

04:33 And what i can then do with that is plug it into equation two, and that takes care of t.

04:38 T is completely gone, right? so what we're doing here is we're subbing 1 into 2.

04:51 So i get negative 9 .81, equal.

04:55 Equals negative 2, v -i -y, 240 over vx.

05:02 And if i do a little bit of cleaning up here, i get negative 9 .81 equals negative 2 over 240...
