A helium-neon laser (λ=632.8 nm) is used to calibrate a diffraction grating. If the first-order

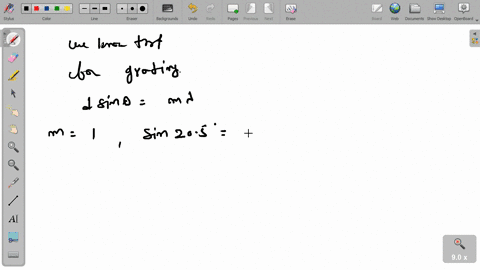

step 1 So in this problem, the web length of the laser is given as 632 .8 nanometer, and it is being us

A helium-neon laser (λ=632.8 nm) is used to calibrate a...

A helium-neon laser $(\lambda=632.8 \mathrm{nm})$ is used to calibrate a diffraction grating. If the first-order maximum occurs at $20.5^{\circ},$ what is the spacing between adjacent grooves in the grating?

Key Concepts

Diffraction Grating

A diffraction grating is an optical device with a series of closely spaced parallel slits or grooves that splits and diffracts light into several beams. The directions of these diffracted beams depend on the spacing between the grooves and the wavelength of the incident light, creating a characteristic interference pattern.

Grating Equation

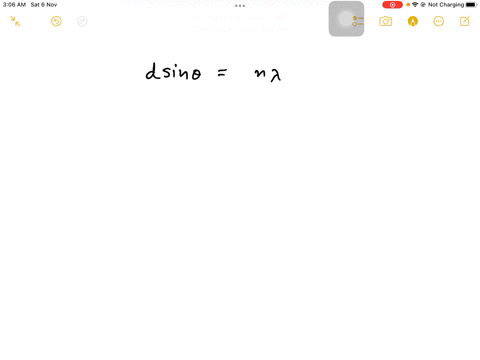

The grating equation, given by d sin? = m?, is fundamental in analyzing how light diffracts through a grating. Here, d represents the spacing between adjacent grooves, ? is the diffraction angle, m is the diffraction order (an integer indicating the sequence of the maximum), and ? is the wavelength of the light. This equation is essential for linking the physical structure of the grating to the observed diffraction pattern.

Constructive Interference

Constructive interference occurs when the light waves diffracted from successive grooves of a grating are in phase, resulting in bright maxima. This happens when the path difference between light from adjacent grooves equals an integer multiple of the wavelength, as expressed in the grating equation.

Diffraction Order

The diffraction order (denoted by m) corresponds to the number of wavelengths by which paths differ in the constructive interference condition. Different orders (first-order, second-order, etc.) produce distinct angles in the diffraction pattern, with the first-order maximum (m=1) being the primary case used in many calibration setups.
