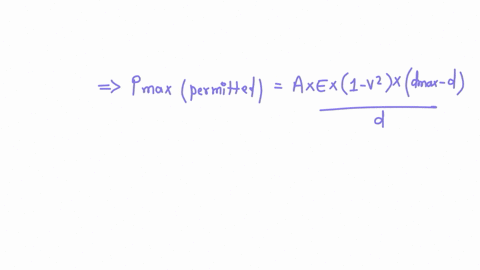

step 1 So here in this question the largest compressive load that is permitted is P max and that is equ

A high-strength steel bar used in a large crane has diameter...

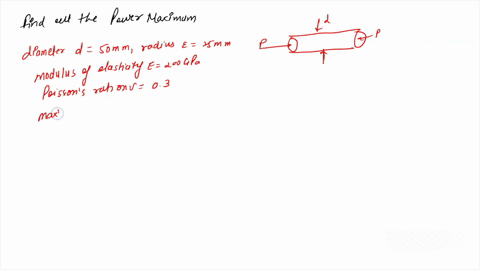

A high-strength steel bar used in a large crane has diameter $d=50 \mathrm{mm}$ (see figure). The steel has modulus of elasticity $E=200 \quad$ GPa and Poisson's ratio $v=0.3 .$ Because of clearance requirements, the diameter of the bar is limited to $50.025 \mathrm{mm}$ when it is compressed by axial forces. What is the largest compressive load $P_{\max }$ that is permitted?

A high-strength steel bar used in a large crane has diameter $d=50 \mathrm{mm}$ (see figure). The steel has modulus of elasticity $E=200 \quad$ GPa and Poisson's ratio $v=0.3 .$ Because of clearance requirements, the diameter of the bar is limited to $50.025 \mathrm{mm}$ when it is compressed by axial forces.
What is the largest compressive load $P_{\max }$ that is permitted?

Key Concepts

Stress and Force Relationship

The relationship between the applied load and the resulting stress in a member involves the cross-sectional area. Stress is defined as the force divided by the area over which it is distributed. Understanding this concept is crucial for determining the magnitude of forces that materials can safely support while meeting deformation constraints.

Axial and Lateral Strain Relationship

When a material is subjected to axial loading, the resulting axial strain causes a proportional lateral strain determined by Poisson's ratio. This relationship is used to calculate the change in dimensions perpendicular to the load, ensuring that deformations remain within allowable limits.

Modulus of Elasticity

The modulus of elasticity, or Young's modulus, quantifies a material's stiffness by relating stress to strain in the elastic region. It is critical for determining the amount of deformation a material will experience under a given load, which is key in designing components to withstand specific applied forces.

Hooke's Law

Hooke's law describes the linear relationship between stress and strain in an elastic material. Under this principle, the axial stress (force per unit area) is directly proportional to the axial strain (relative deformation) via the modulus of elasticity. This concept is essential for understanding how materials deform under load in the elastic regime.

Poisson's Ratio

Poisson's ratio is a measure that relates the transverse (lateral) strain to the axial strain when a material is loaded. It indicates how much a material will expand or contract in directions perpendicular to the applied load and is particularly important when evaluating dimensional changes in features constrained by clearance requirements.
